IAUZ40N10S5L120
  • IAUZ40N10S5L120

IAUZ40N10S5L120

Active and preferred

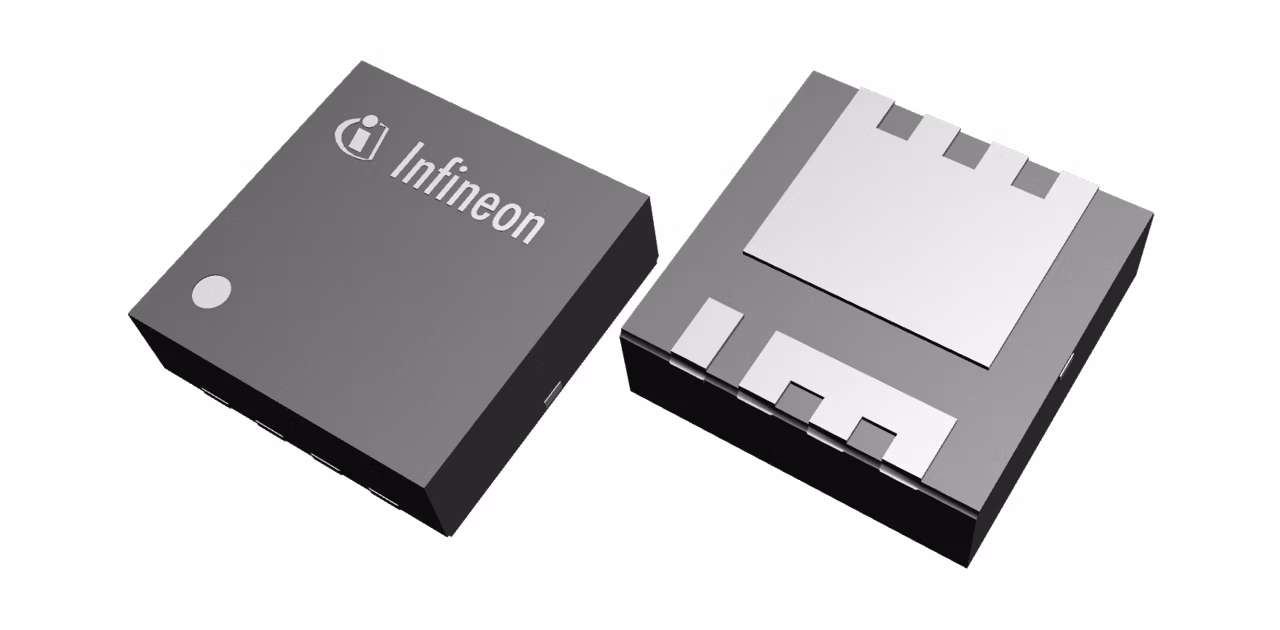

The IAUZ40N10S5L120 is a 12.0mR 100V MOSFET in a S3O8 3x3 mm² package, using Infineon's leading OptiMOS™ 5 technology. Next to others it is used in in LED lighting and for motor control.

Infineon Technologies IAUZ40N10S5L120 Product Info

16 April 2026 0

Parameters

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Germany

ID (@25°C) max

40 A

Launch year

2021

Operating Temperature range

-55 °C to 175 °C

Package

PG-TSDSON-8

Planned to be available until at least

2038

Polarity

N

QG (typ @10V)

17.4 nC

QG (typ @10V) max

22.6 nC

Qualification

Automotive

RDS (on) (@10V) max

12 mΩ

Technology

OptiMOS™5

VDS max

100 V

VGS(th) range

1.2 V to 2.2 V

VGS(th)

1.7 V

Features

  • OptiMOS™ 5 power MOSFET
  • N-channel-Enhancement mode-Logic Level
  • AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green Product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device
