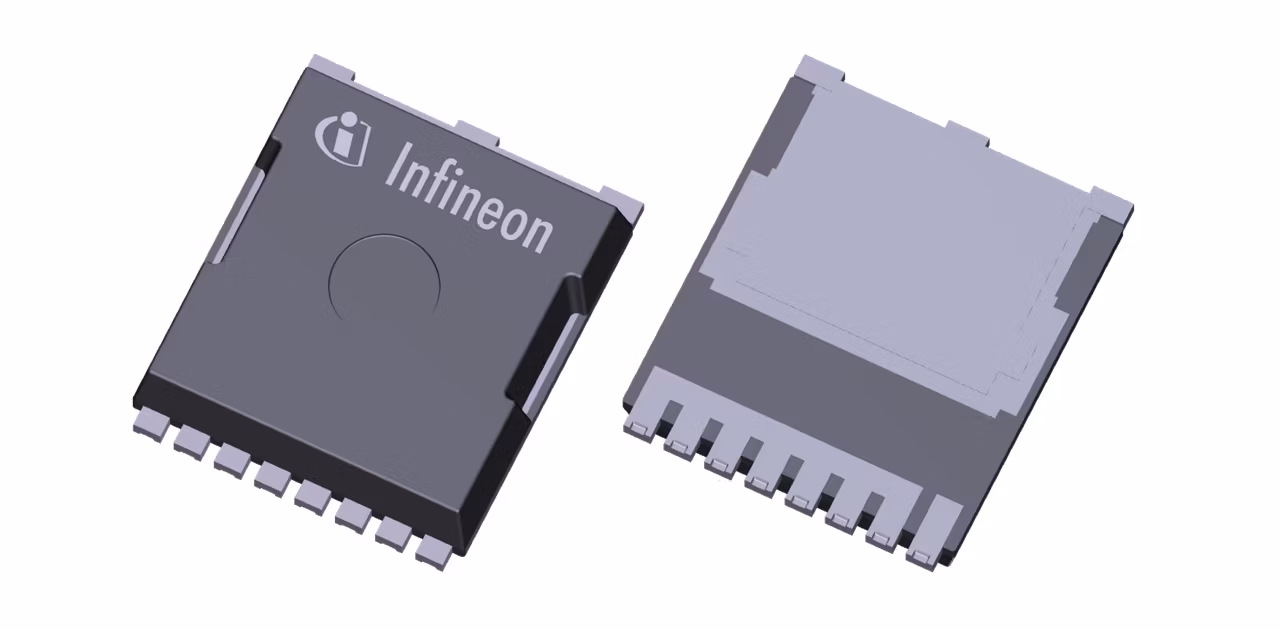

IAUT300N10S5N015

Active and preferred

Infineon Technologies IAUT300N10S5N015 Product Info

16 April 2026 0

Budgetary Price €/1k	1.95
Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Germany
ID (@25°C) max	300 A
IDpuls max	1200 A
Launch year	2017
Operating Temperature range	-55 °C to 175 °C
Package	TOLL (PG-HSOF-8)
Planned to be available until at least	2038
Polarity	N
Ptot max	375 W
QG (typ @10V) max	216 nC
QG (typ @10V)	166 nC
Qualification	Automotive
RDS (on) (@10V) max	1.5 mΩ
RthJC max	0.4 K/W
Technology	OptiMOS™5
VDS max	100 V
VGS(th) range	2.2 V to 3.8 V
VGS(th)	3 V

DC-DC converter high-voltage, On-board charging (OBC), Fuel-cell control unit (FCCU), DIN rail power supply solutions
