IAUT300N08S5N012

Active and preferred

Infineon Technologies IAUT300N08S5N012 Product Info

16 April 2026 0

Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Austria, Germany
ID (@25°C) max	300 A
IDpuls max	1200 A
Launch year	2016
Operating Temperature range	-55 °C to 175 °C

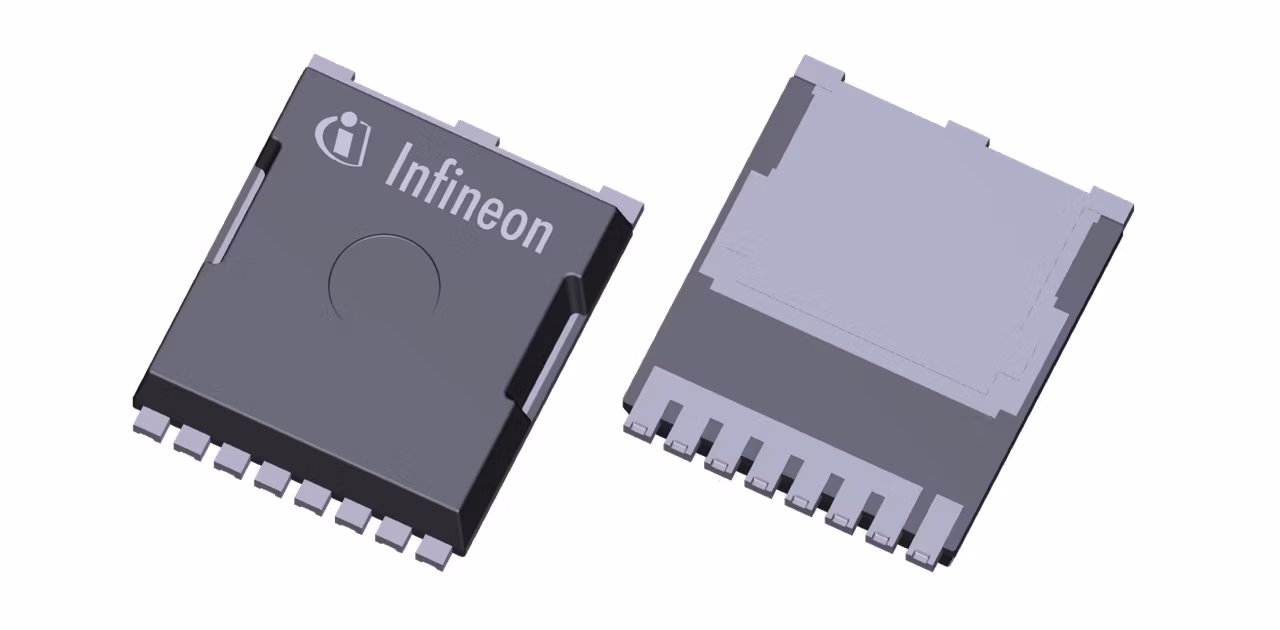

Package	TOLL (PG-HSOF-8)
Planned to be available until at least	2038
Polarity	N
Ptot max	375 W
QG (typ @10V)	178 nC
QG (typ @10V) max	231 nC
Qualification	Automotive
RDS (on) (@10V) max	1.2 mΩ
RthJC max	0.4 K/W
Technology	OptiMOS™5
VDS max	80 V
VGS(th) range	2.2 V to 3.8 V
VGS(th)	3 V

Automotive body control module (BCM), Automotive battery management system (BMS) - 48 V, Fuel-cell control unit (FCCU)
