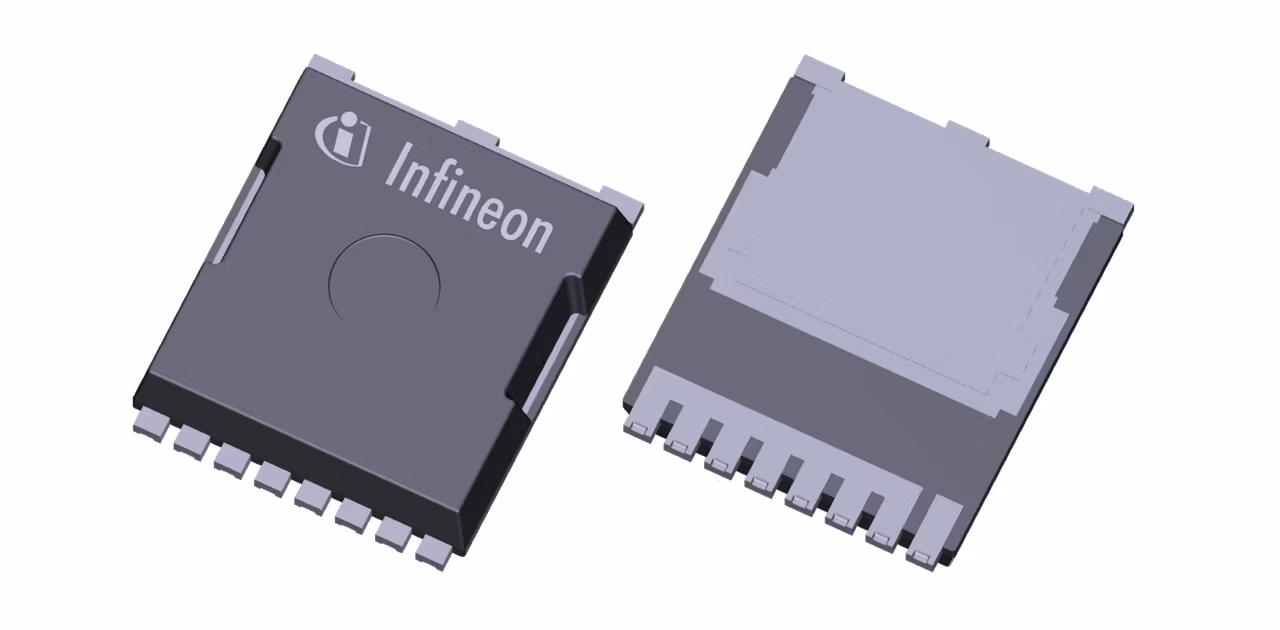

IAUT200N08S5N023

Active and preferred

Infineon Technologies IAUT200N08S5N023 Product Info

16 April 2026 0

Budgetary Price €/1k	1.18
Country of Assembly (Last BE site, current, subject to change)	Malaysia
Country of Diffusion (Last FE site, current, subject to change)	Austria, Germany
ID (@25°C) max	200 A
IDpuls max	800 A
Launch year	2018
Operating Temperature range	-55 °C to 175 °C
Package	TOLL (PG-HSOF-8)
Planned to be available until at least	2039
Polarity	N
Ptot max	200 mW
QG (typ @10V) max	110 nC
QG (typ @10V)	85 nC
Qualification	Automotive
RDS (on) (@10V) max	2.3 mΩ
RthJC max	0.7 K/W
Technology	OptiMOS™5
VDS max	80 V
VGS(th) range	2.2 V to 3.8 V
VGS(th)	3 V

Chassis control & safety, Light electric vehicle solutions
