IAUS300N10S5N015T
  • IAUS300N10S5N015T

IAUS300N10S5N015T

Active and preferred

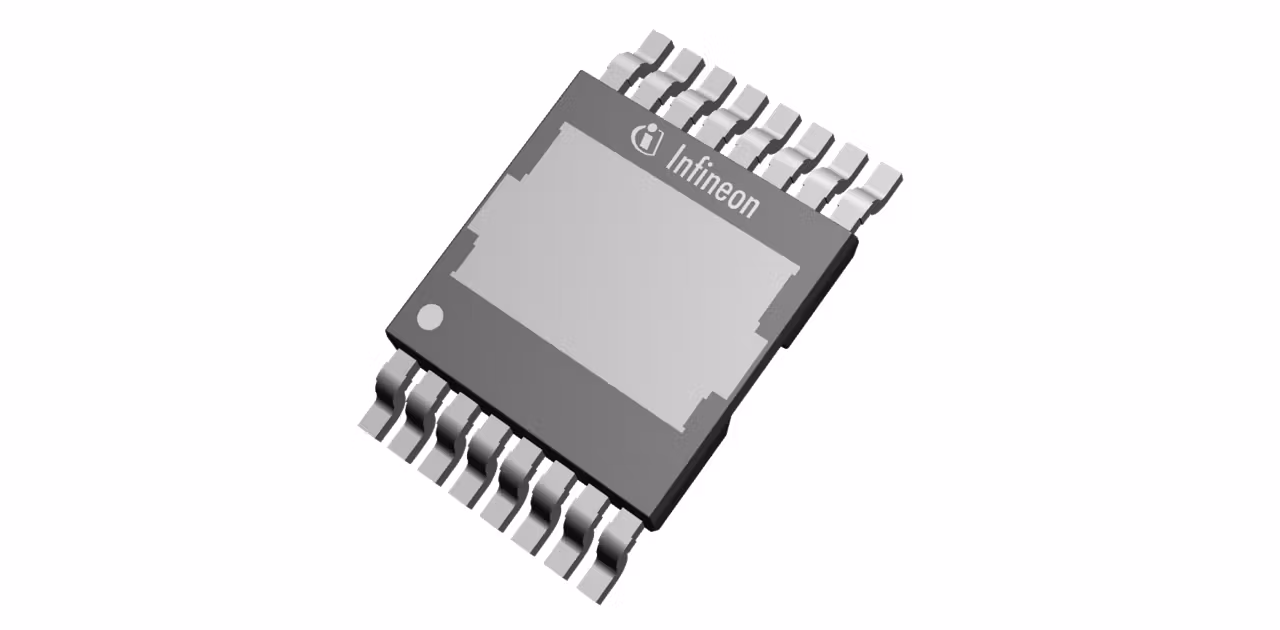

The IAUS300N10S5N015T is a 1.5 mΩ, topside-cooled 100 V MOSFET coming in the TOLT package with Infineon’s leading OptiMOS™-5 technology. Next to others the device is designed for 48V applications and is primarily used in the 48V inverter, the HV-LV DC-DC converter as well as other 48V auxiliary applications.

Infineon Technologies IAUS300N10S5N015T Product Info

16 April 2026 1

Parameters

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Germany

ID (@25°C) max

300 A

Launch year

2020

Operating Temperature range

-55 °C to 175 °C

Package

PG-HDSOP-16

Planned to be available until at least

2038

Polarity

N

QG (typ @10V)

166 nC

QG (typ @10V) max

216 nC

Qualification

Automotive

RDS (on) (@10V) max

1.5 mΩ

Technology

OptiMOS™5

VDS max

100 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Apps

EV traction inverter, DC-DC converter high-voltage, On-board charging (OBC), DIN rail power supply solutions

Features

  • OptiMOS™ 5 power MOSFET
  • N-channel–Enhancement mode–Normal Level
  • AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Ultra low RDS(on)
  • Green Product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device
