IAUCN04S7N040H
  • IAUCN04S7N040H

IAUCN04S7N040H

Active and preferred

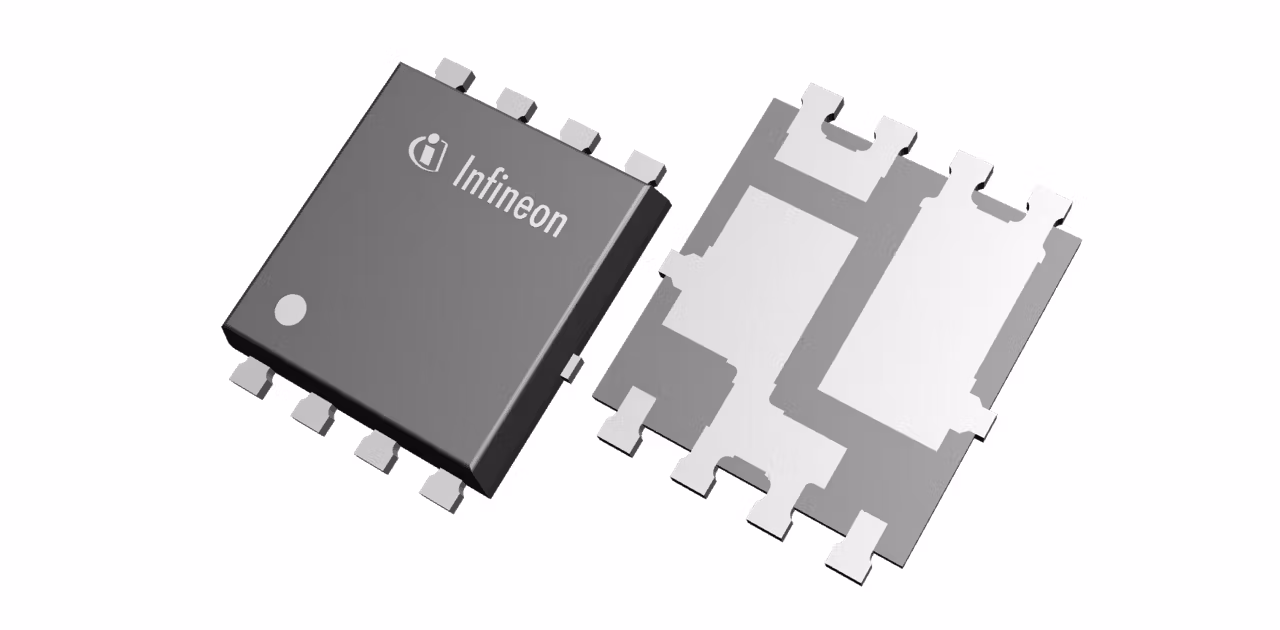

The new integrated SSO8 half-bridge (5x6mm²) is the innovative and cost-efficient package solution for motor drive & body applications. The integrated half-bridge provides the ideal solution for optimized routing in bridge applications and helps reduce the PCB area considerably. The new OptiMOS™-7 40V portfolio provides a wide RDS(on) range from 2.3 mΩ to 5.4 mΩ combined with an increased current rating of up to 100A.

Infineon Technologies IAUCN04S7N040H Product Info

16 April 2026 0

Parameters

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Austria, Germany

ID (@25°C) max

82 A

Launch year

2025

Operating Temperature range

-55 °C to 175 °C

Package

Dual SSO8 HB

Planned to be available until at least

2038

Polarity

N

QG (typ @10V) max

17 nC

QG (typ @10V)

13 nC

Qualification

Automotive

RDS (on) (@10V) max

4.01 mΩ

Technology

OptiMOS™7

VDS max

40 V

VGS(th) range

2.2 V to 3 V

VGS(th)

2.6 V

Apps

Body control modules (BCM), Seat control module, Smart power closure system, Smart window control module, Electric parking brake, Automotive electric pumps & fans 12 V

Features

  • 5x6 mm² H-bridge footprint
  • 100A high current capability
  • 2-channel H-bridge configuration
  • Leading-edge OptiMOS™-7 40V
  • RDS(on) range: 2.3 mΩ – 5.4 mΩ
  • Cu-clip for low RDS(on) & low inductance
  • High avalanche capability
  • SOA ruggedness

Description

  • High power & current density in H-bridge
  • Optimized layout & form factor
  • High thermal capacity lead-frame
  • Reduced conduction losses
  • Optimized switching behavior
  • JEDEC industry std. package
  • Automotive robust package & IFX quality
