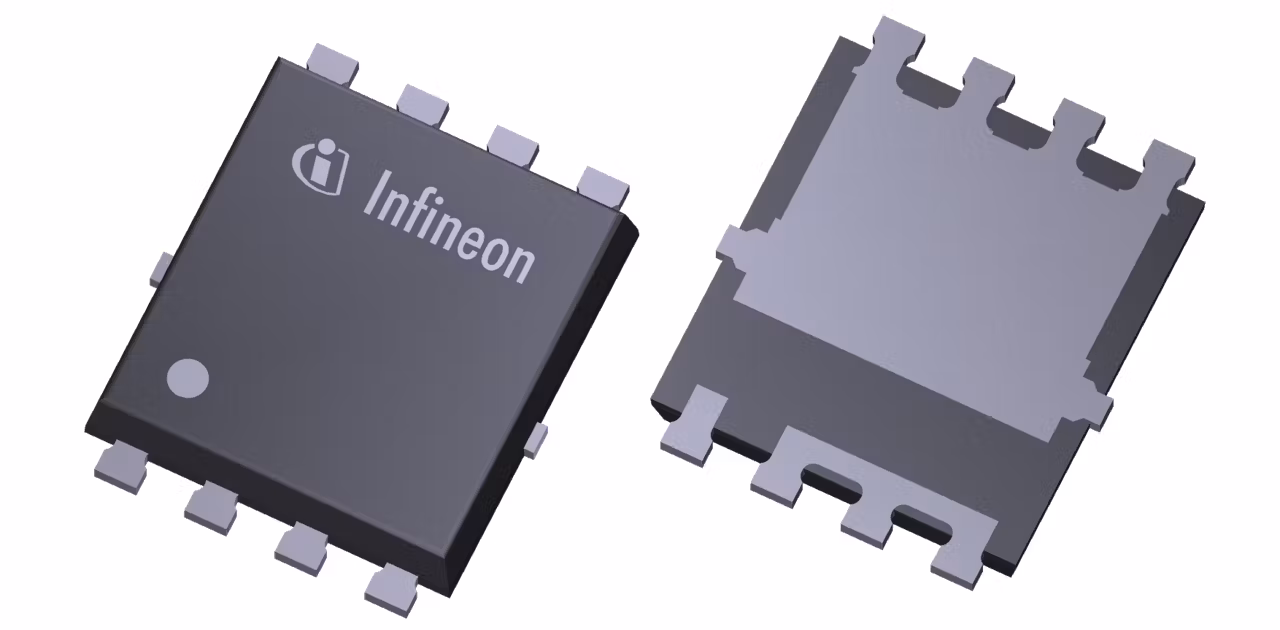

IAUCN04S7L014
  • IAUCN04S7L014

IAUCN04S7L014

Active and preferred

A portfolio of 16 products (RDS(on)max from 0.4 mΩ to 3.0 mΩ which enables the best product fit in the applications. All of this enables the Best-in-Class product FOM (RDS(on)x Qg) and performance on the market.

Infineon Technologies IAUCN04S7L014 Product Info

16 April 2026 0

Parameters

Country of Assembly (Last BE site, current, subject to change)

Indonesia, Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Austria, Germany

ID (@25°C) max

120 A

Launch year

2023

Operating Temperature range

-55 °C to 175 °C

Package

PG-TDSON-8

Planned to be available until at least

2038

Polarity

N

QG (typ @10V) max

47 nC

QG (typ @10V)

36 nC

Qualification

Automotive

RDS (on) (@10V) max

1.43 mΩ

Technology

OptiMOS™7

VDS max

40 V

VGS(th) range

1.2 V to 1.8 V

VGS(th)

1.5 V

Features

  • Very low Ron*A
  • High Avalanche capability
  • High SOA ruggedness
  • Fast switching times (turn on/off)
  • N-channel–Enhancement mode–Logic Level
  • Extended qualification beyond AEC-Q101
  • Enhanced electrical testing
  • Robust design
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Low package resistance and inductance
  • PPAP Capable Device

Description

  • High power efficiency
  • Increased design ruggedness
  • Optimized switching performance
  • Small footprint & efficient cooling
  • High quality product design
  • High quality FE&BE production
  • Excellent thermal performance
