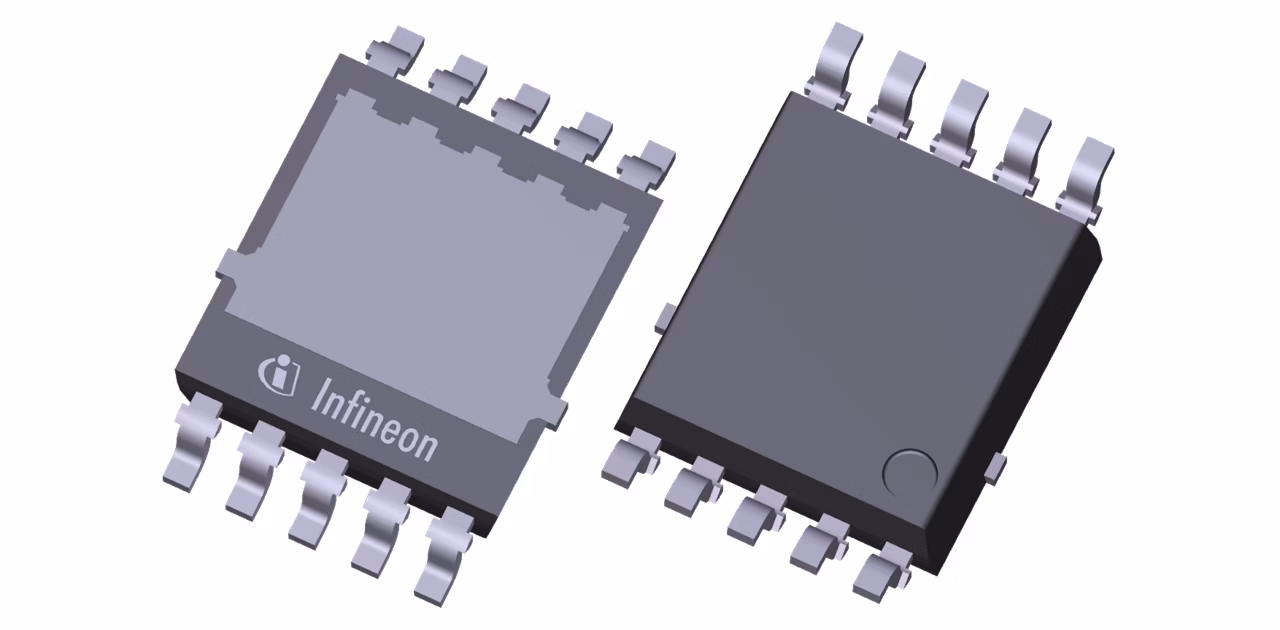

IAUCN04S6N007T
  • IAUCN04S6N007T

IAUCN04S6N007T

Active and preferred

This innovative TSC package provides exceptional cooling, high power density, and optimized system costs. The initial portfolio includes four products in the OptiMOS™ 6 series, rated at 40V, with plans for future expansion. The RDS(on) max values range from 1.73 mΩ down to an impressive 0.75 mΩ. The SSO10T TSC package is JEDEC listed, ensuring it is suitable for open market use and offers broad compatibility with second sources.

Infineon Technologies IAUCN04S6N007T Product Info

16 April 2026 0

Parameters

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Germany

ID (@25°C) max

120 A

Launch year

2023

Operating Temperature range

-55 °C to 175 °C

Planned to be available until at least

2029

Polarity

N

QG (typ @10V) max

130 nC

QG (typ @10V)

100 nC

Qualification

Automotive

RDS (on) (@10V) max

0.75 mΩ

Technology

OptiMOS™6

VDS max

40 V

VGS(th) range

2.2 V to 3 V

VGS(th)

2.6 V

Features

  • Direct cooling path to ECU housing
  • Improves Zth by -20% up to -50%
  • Improves Rth by -20% up to -50%
  • Enables double sided PCB design
  • Provides higher application currents
  • JEDEC listed package
  • PPAP Capable Device

Description

  • Best Cooling Performance
  • No heat transfer into PCB
  • Very compact PCB design
  • Reduces system area
  • Reduces cooling efforts & costs
  • Reduces system costs & design efforts
  • High power density & efficiency
