FS820R08A6P2B
  • FS820R08A6P2B

FS820R08A6P2B

Active and preferred

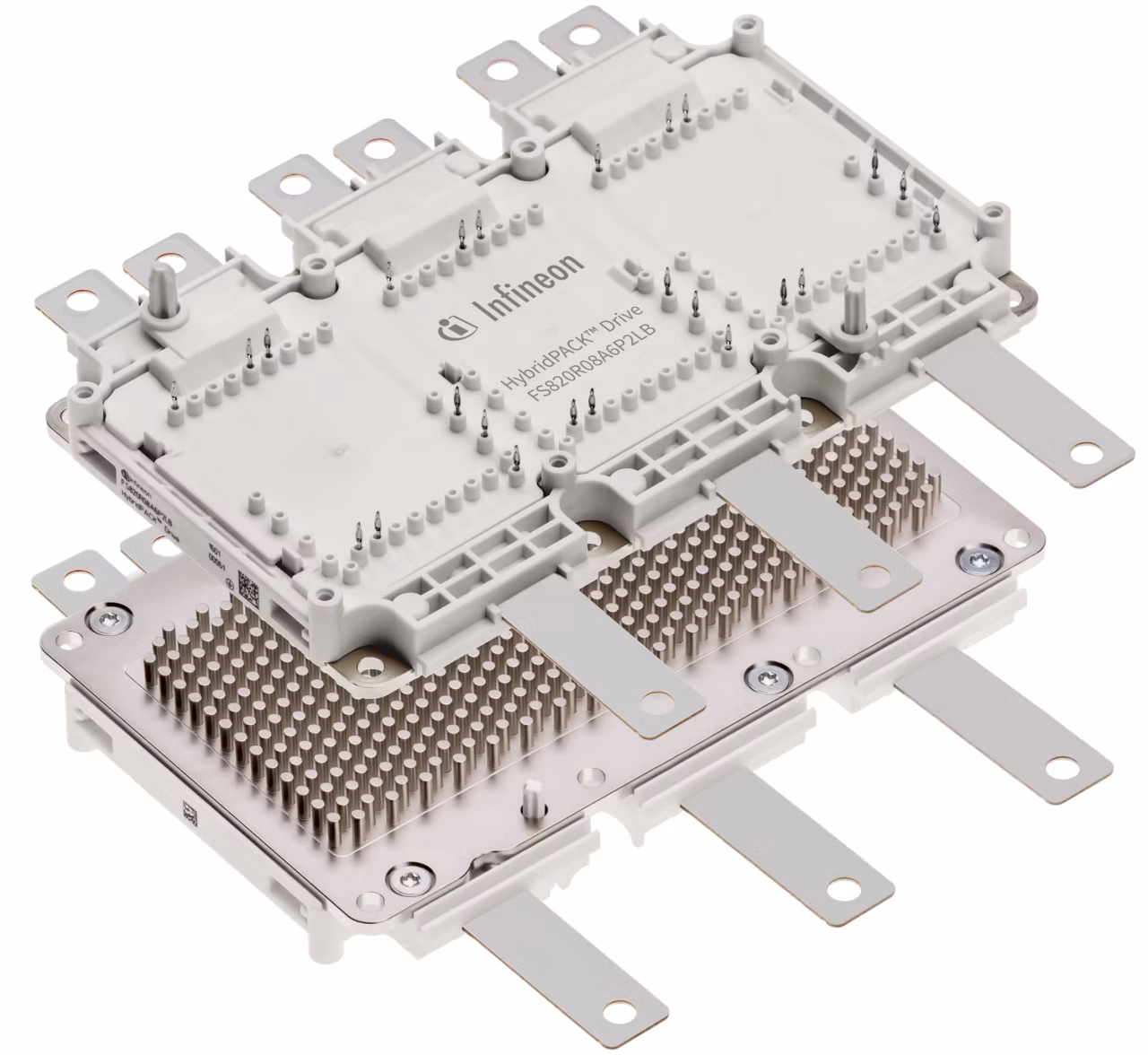

HybridPACK™ Drive module with EDT2 IGBT and Diode is an automotive qualified power module designed for Hybrid- and Electric Vehicle applications .Find appropriate Automotive EiceDRIVER™ .

Infineon Technologies FS820R08A6P2B Product Info

16 April 2026 12

Parameters

Applications

CAV, eMobility, Hybrid Electric Vehicles, Drives

Configuration

Sixpack

Cooling Concept

PinFin baseplate

Dimensions (width)

100.5 mm

Dimensions (length)

154.5 mm

Features

PinFin Baseplate, Short Tabs

Housing

HybridPACK™ Drive

IC(nom) / IF(nom)

820 A

IC max

820 A

Launch year

2017

Planned to be available until at least

2038

Qualification

Automotive

Rated Current

820 A

Technology

IGBT EDT2

VCE(sat) (Tvj=25°C typ)

1.1 V

VCES (Tvj=25°C typ)

750 V

VF (Tvj=25°C typ)

1.45 V

Voltage Class max

750 V

Apps

Electric vehicle drivetrain system, EV traction inverter

Features

  • Blocking Voltage 750V
  • Low VCEsat
  • Low Switching Losses
  • Low QG & Cres
  • Low Inductive Design
  • Tvj op = 150°C
  • Short-time ext Op Tvj op = 175°C

Description

  • Compact Design
  • Guiding elements for PCB
  • PressFIT Contact Technology
  • RoHS compliant
