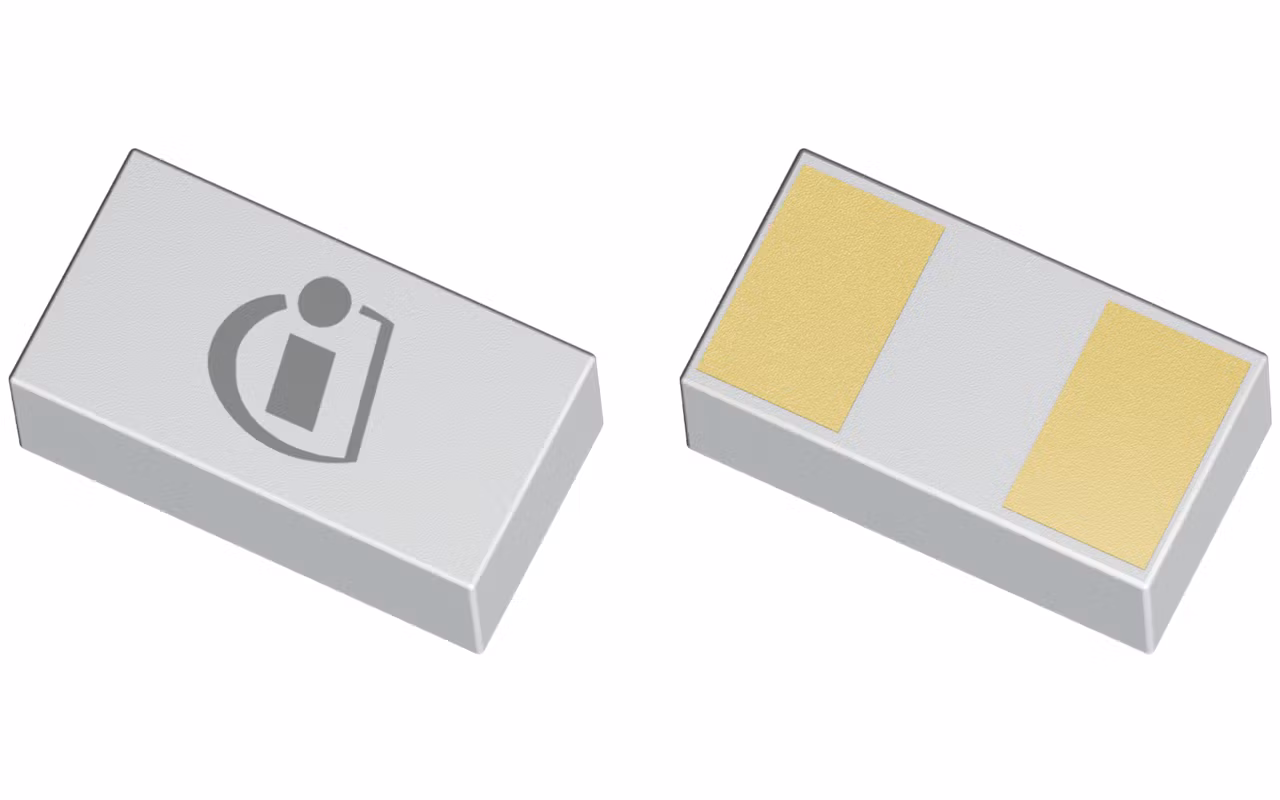

ESD240-B1-W01005

Active and preferred

Infineon Technologies ESD240-B1-W01005 Product Info

16 April 2026 0

Health and lifestyle

ESD / transient protection according to:
IEC61000-4-2 (ESD): ±18/±15 kV (air / contact discharge)
IEC61000-4-4 (EFT): ±1.5 kV / ±30 A (5/50 ns)
IEC61000-4-5 (Surge): ±2.5 A (8/20 μs)
Bi-directional working voltage up to: VWM = ±22 V
Line capacitance: CL = 3 pF (typical) at f = 1 MHz
Clamping voltage: VCL = 29 V (typical) at ITLP = 16 A with RDYN = 0.36 Ω (typical)
Very low reverse current: IL < 1 nA (typical)
Small form factor SMD size 01005 and low profile (0.43 mm x 0.23 mm x 0.15 mm)
Bi-directional and symmetric I/V characteristics for optimized design / assembly
