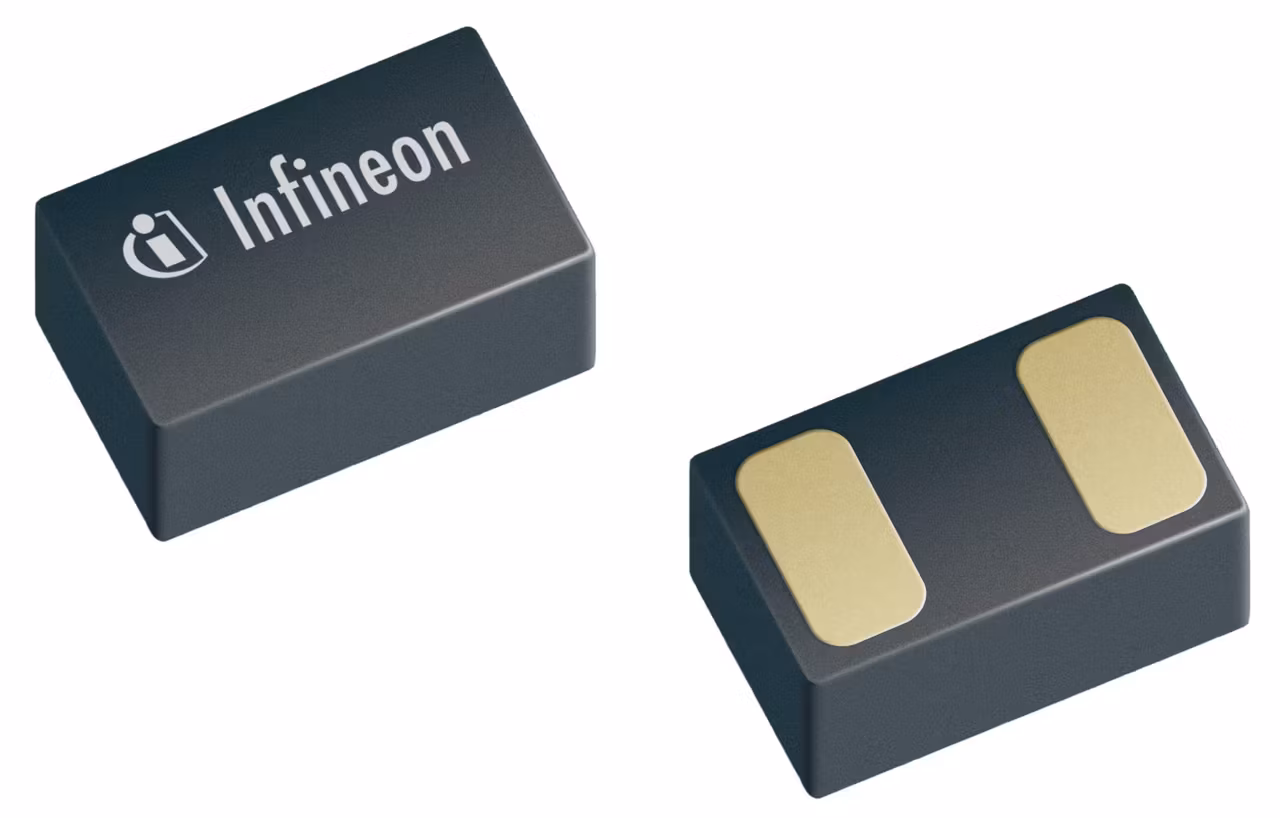

ESD207-B1-02EL
  • ESD207-B1-02EL

ESD207-B1-02EL

Ultra Low Clamping Bidirectional ESD / Transient Protection Diode

Infineon Technologies ESD207-B1-02EL Product Info

16 April 2026 0

Parameters

CL max

20 pF

CL

14 pF

Green

RoHS compliant, Halogen free

IEFT

40A

IPP

8A

IR max

50 nA

Protected Lines

1

Rdyn (reverse)

0.13 Ω

Rdyn (forward)

0.13 Ω

Vcl typ. reverse (TLP 16A)

7 V

Vcl typ. reverse (@16A)

7 V

VESD range

-30 kV to 30 kV

VWM

3.3 V

Features

  • ESD / transient protection according to:
    – IEC61000-4-2 (ESD): ±30 kV (air/contact discharge)
    - IEC61000-4-4 (EFT): 40 A (5/50 ns)
    – IEC61000-4-5 (Surge): 8A (8/20 µs)
  • Bi-directional, working voltage up to VRWM = ±3.3 V max.
  • Low capacitance: CL = 14 pF (typical)
  • Ultra low dynamic resistance: RDYN = 0.13 Ω typ.
  • Low reverse current. IR = 50nA (max.)
  • Pb-free (RoHS compliant) and halogen free package
