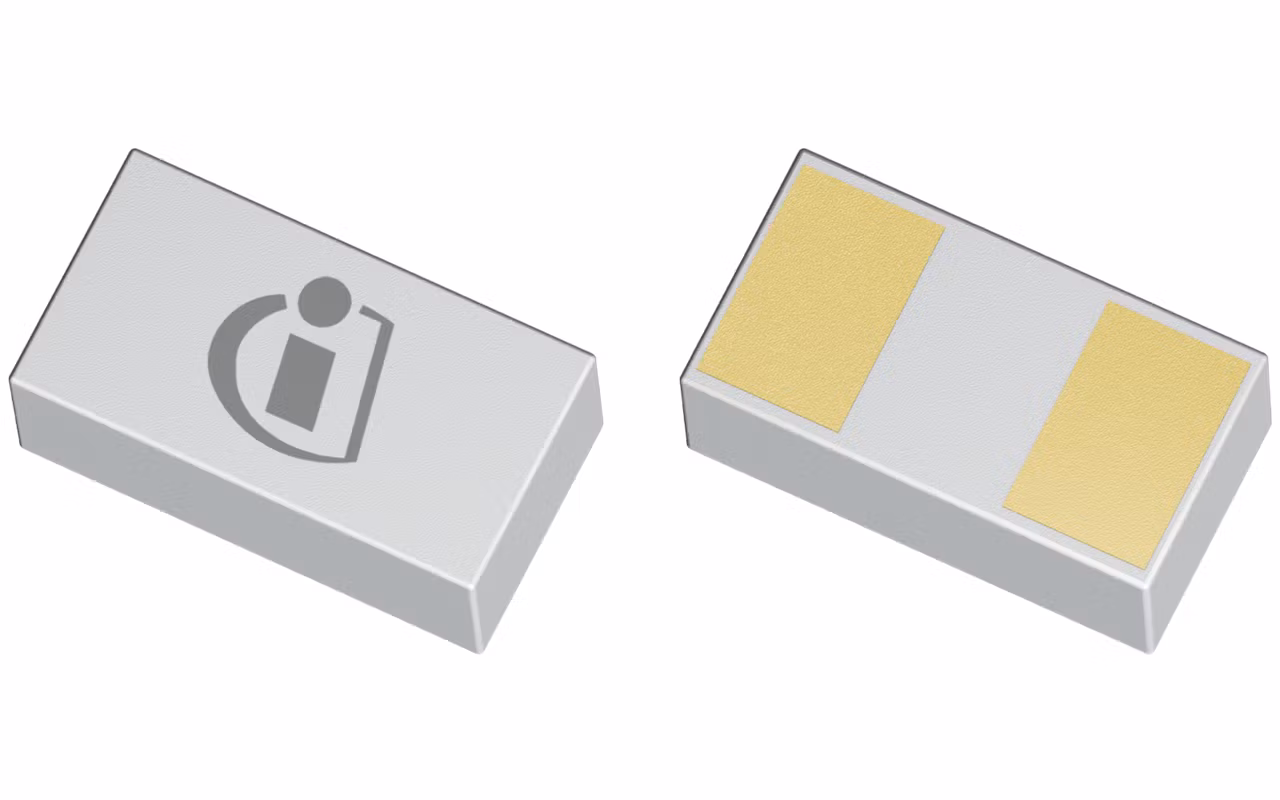

ESD202-B1-CSP01005
  • ESD202-B1-CSP01005

ESD202-B1-CSP01005

Active and preferred

Miniaturized Low Capacitance Bi-directional ESD / Transient Protection Diode

Infineon Technologies ESD202-B1-CSP01005 Product Info

16 April 2026 0

Parameters

CL

6.5 pF

Green

RoHS compliant, Halogen free

IEFT

40A

IPP

3.0A

IR max

100 nA

IR

1 nA

Protected Lines

1

Rdyn (reverse)

0.2 Ω

Rdyn (forward)

0.2 Ω

Vcl typ. reverse (TLP 16A)

13 V

Vcl typ. reverse (TLP 30A)

17 V

VESD range

-15 kV to 15 kV

VWM range

-5.5 V to 5.5 V

Apps

Mobile device and smartphone solutions, Health and lifestyle, Consumer Wearables

Features

  • ESD / transient protection according to:
  • – IEC61000-4-2 (ESD): ±15 kV (air/contact discharge)
  • – IEC61000-4-5 (Surge): 3A (8/20 µs)
  • Bi-directional, working voltage up to VRWM = ±5.5 V max.
  • Low capacitance: CL = 6.5 pF (typical)
  • Ultra low dynamic resistance: R DYN = 0.20 Ω typ.
  • Low reverse current. IR = 100nA (max.)
  • Pb-free (RoHS compliant) and halogen free package
