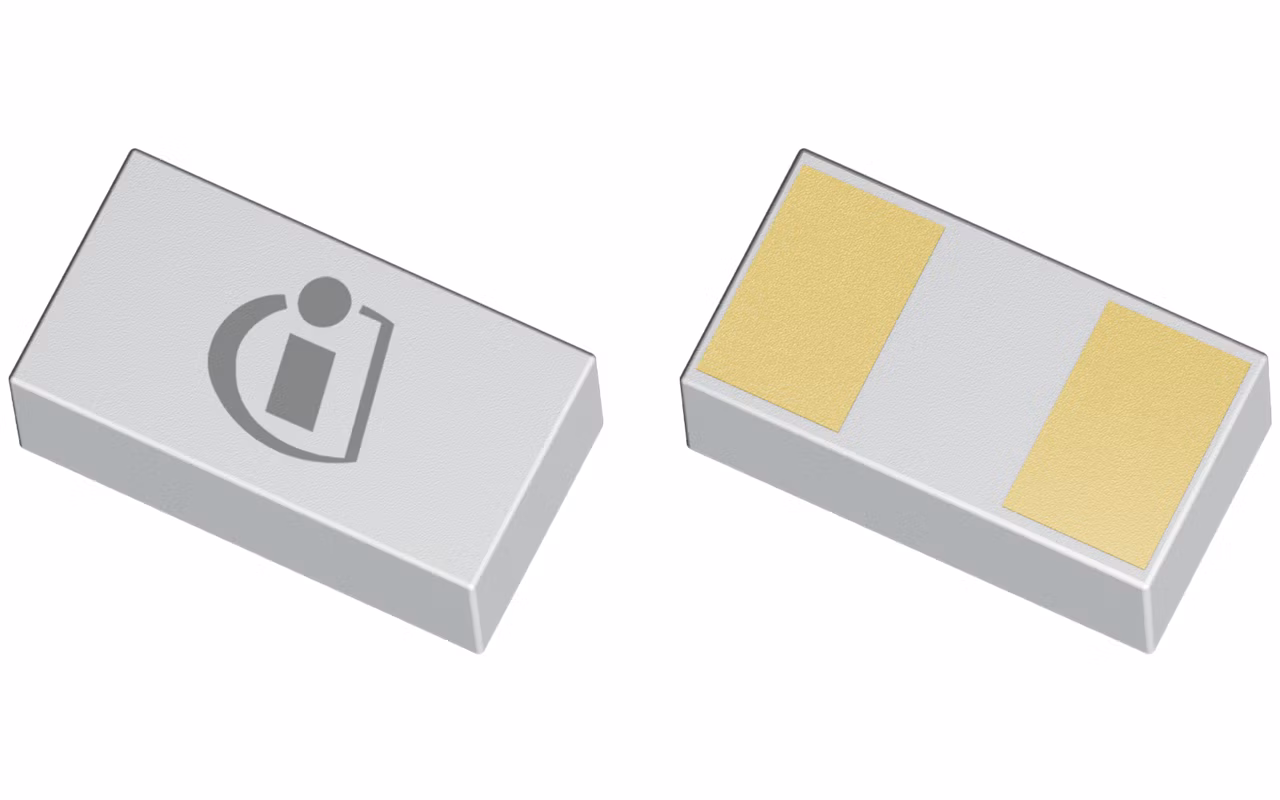

ESD157-B1-W01005
  • ESD157-B1-W01005

ESD157-B1-W01005

Active and preferred

This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance.

Infineon Technologies ESD157-B1-W01005 Product Info

16 April 2026 0

Parameters

CL max

0.18 pF

Green

RoHS compliant, Halogen free

IEFT

50 A

IPP

2 A

IR max

20 nA

IR

0.1 nA

Protected Lines

1

Rdyn (forward)

0.18 Ω

Rdyn (reverse)

0.18 Ω

Vcl typ. reverse (@16A)

5.4 V

VESD range

-15 kV to 15 kV

VWM range

-3.3 V to 3.3 V

Features

  • ESD / transient protection according to:
    - IEC61000-4-2 (ESD): ±15 kV (air) / ±15 kV (contact)
    - IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns)
    - IEC61000-4-5 (Surge): ±2 A (8/20 μs)
  • Bi-directional maximum working voltage: VWM = ±3.6 V
  • Line capacitance: CL = 0.17 pF at f = 10 GHz
  • Clamping voltage: Vcl = 5.4 V at ITLP = 16 A with Rdyn = 0.18 Ω
  • Very low leakage current: IL = 0.1 nA
  • Small form factor SMD size 01005, low profile (0.43 x 0.23 x 0.15 mm³)
