ESD133-B1-W01005
  • ESD133-B1-W01005

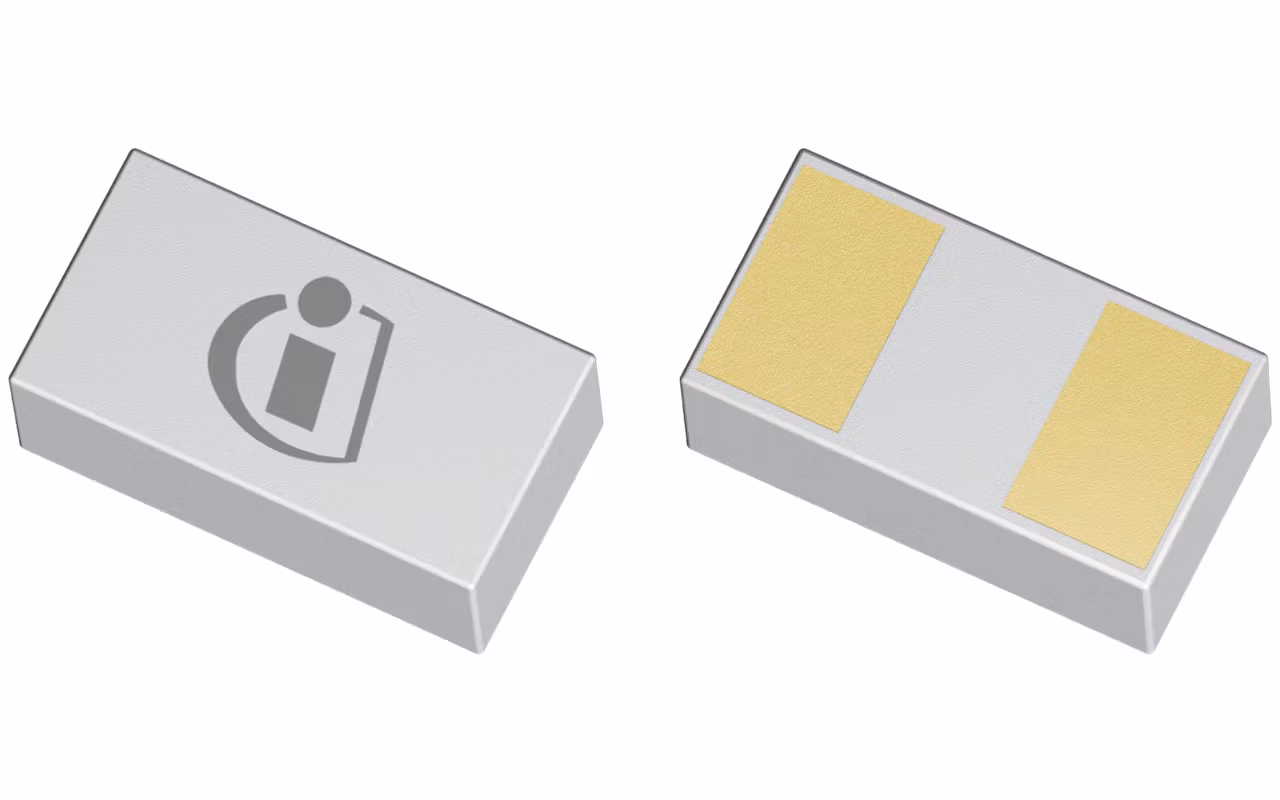

ESD133-B1-W01005

Active and preferred

Low Clamping Voltage, Low Capacitance, Bi Directional ESD/ Transient Protection Diode (TVS: transient voltage suppressor)Bi-directional, 5.5 V, 0.2 pF, 01005, RoHS and Halogen Free compliant

Infineon Technologies ESD133-B1-W01005 Product Info

16 April 2026 0

Parameters

CL

0.2 pF

Green

RoHS compliant, Halogen free

IEFT

50 A

IPP

3 A

IR max

100 nA

Protected Lines

1

Rdyn (reverse)

0.56 Ω

Rdyn (forward)

0.56 Ω

Vcl typ. reverse (TLP 16A)

13

Vcl typ. reverse (@16A)

13 V

VESD range

-20 kV to 20 kV

VWM range

-5.5 V to 5.5 V

Apps

Automotive telematics control unit (TCU), Semiconductor solutions for home entertainment applications, Consumer Wearables

Features

  • ESD / transient protection according to:
  • IEC61000-4-2 (ESD): ±20 kV (air / contact discharge)
  • IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns)
  • IEC61000-4-5 (Surge): ±3 A (8/20 μs)
  • Bi-directional working voltage up to: VRWM = ±5.5 V
  • Line capacitance: CL = 0.2 pF (typical) at f = 1 MHz
  • Clamping voltage: VCL = 13 V (typical) at ITLP = 16 A with RDYN = 0.56 Ω (typical)
  • Very low reverse current: IR < 1 nA (typical)
  • Small form factor SMD size 01005 and low profile (0.43 mm x 0.23 mm x 0.15 mm)
  • Bi-directional and symmetric I/V characteristics for optimized design / assembly
