ESD105-B1-02EL
  • ESD105-B1-02EL

ESD105-B1-02EL

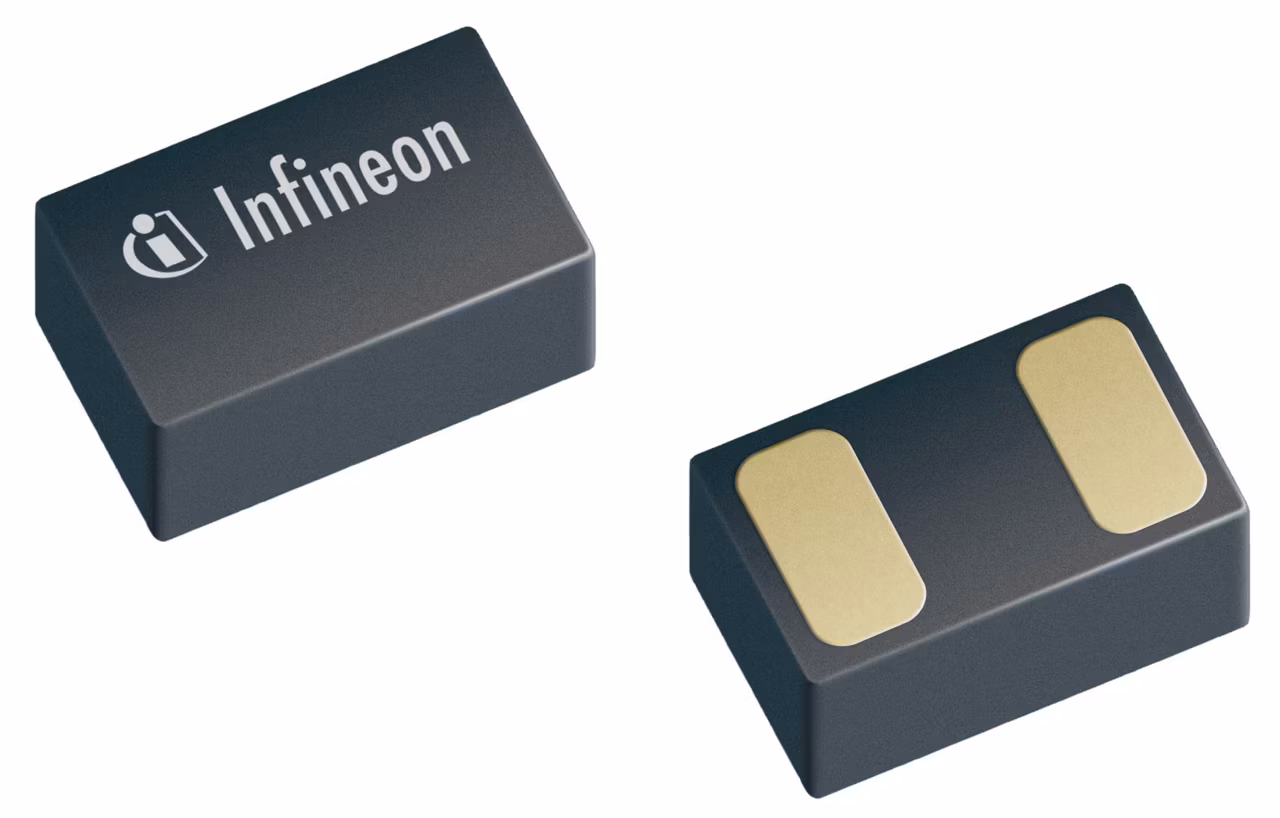

Bi-directional Ultra-low Capacitance ESD/Transient Protection Diode

Infineon Technologies ESD105-B1-02EL Product Info

16 April 2026 0

Parameters

CL max

0.45 pF

CL

0.3 pF

Green

RoHS compliant, Halogen free

IEFT

50 A

IPP

5 A

IR max

20 nA

IR

1 nA

Protected Lines

1

Rdyn (reverse)

0.38 Ω

Rdyn (forward)

0.38 Ω

Vcl typ. reverse (TLP 30A)

19V

Vcl typ. reverse (TLP 16A)

13V

Vcl typ. reverse (@16A)

13 V

VESD range

-25 kV to 25 kV

VWM range

-5.5 V to 5.5 V

Features

  • ESD / transient protection of RF signal lines according to:
  • IEC61000-4-2 (ESD): ±25 kV (air/contact)
  • IEC61000-4-4 (EFT): 50 A (5/50 ns)
  • IEC61000-4-5 (surge): 5 A (8/20 μs)
  • Maximum working voltage: VRWM ±5.5 V
  • Extremely low capacitance: CL = 0.3 pF (typical)
  • Extremely low clamping voltage: VCL = 11 V at IPP = 5 A (typical)
  • Very low reverse current IR < 1 nA typ.
  • Very small form factor down to 1.0 x 0.6 x 0.3 mm3
  • Pb-free (RoHS compliant) and halogen free package
