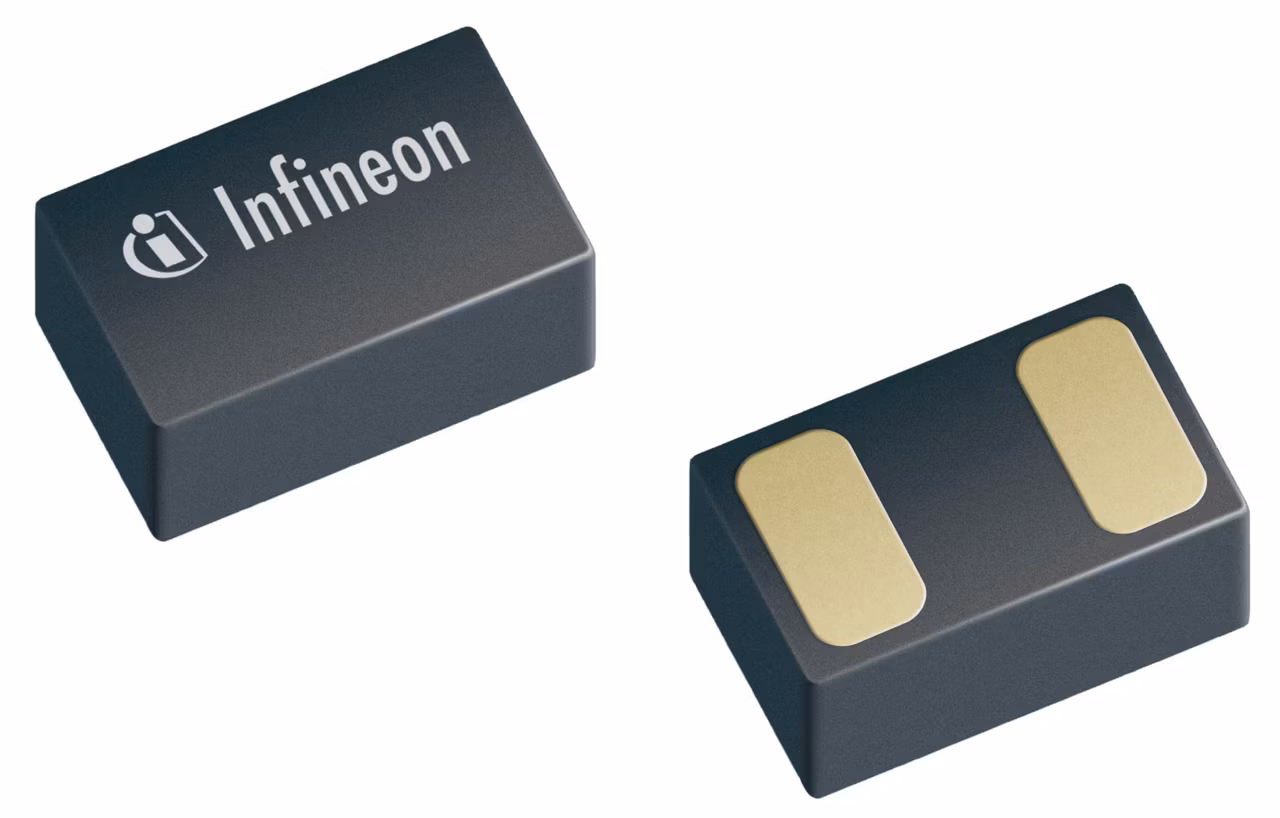

ESD103-B1-02EL
  • ESD103-B1-02EL

ESD103-B1-02EL

Active

Bi-directional Ultra Low Capacitance ESD / Transient Protection

Infineon Technologies ESD103-B1-02EL Product Info

16 April 2026 1

Parameters

CL max

0.2 pF

CL

0.13 pF

Green

RoHS compliant, Halogen free

IR max

50 nA

IR

0.1 nA

Protected Lines

1

Rdyn (reverse)

1.8 Ω

Rdyn (forward)

1.8 Ω

Vcl typ. reverse (TLP 16A)

48

Vcl typ. reverse (@16A)

18 V

VESD range

-10 kV to 10 kV

VWM range

-15 V to 15 V

Features

  • ESD / transient protection of high speed data lines exceeding:
    – IEC61000-4-2 (ESD): ±10 kV (contact)
  •  Maximum working voltage: VRWM = ±15 V
  • Ultra low capacitance CL = 0.09 pF I/O to GND (typical)
  • Very low clamping voltage: VCL= 48 V at IPP = 16 A (typical)
  •  Very low dynamic resistance: RDYN = 1.8 Ω (typical)
  •  Pb-free and halogen-free package (RoHS compliant)
