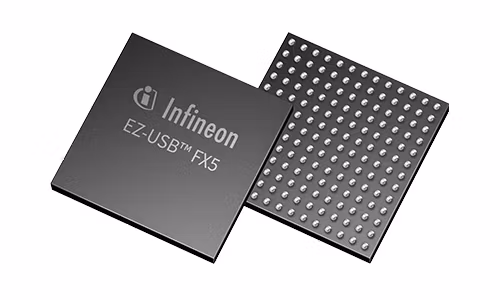

CYUSB3083-FCAXI
  • CYUSB3083-FCAXI

CYUSB3083-FCAXI

Active and preferred

Infineon's EZ-USB™ FX5 solution extends the legacy of EZ-USB™ FX3, the industry’s gold standard for USB peripheral controller, to the next level with the latest ultra-fast USB 5Gbps and LVDS interfaces increasing the total bandwidth up to 116% of its predecessor (3.7Gbps vs. 3.2 Gbps).

Infineon Technologies CYUSB3083-FCAXI Product Info

16 April 2026 0

Parameters

Applications

Industrial automation, 3d Scanners, Machine Vision, Video frame grabber, Mixed reality headset

Family

EZ-USB™ FX5

Flash

512 kByte

LVCMOS

Y

LVDS

Y

Operating Temperature range

-40 °C to 85 °C

Operating Voltage range

1.7 V to 3.6 V

Package Type

169-ball FBGA

Peak Reflow Temp

260 °C

Processor Type

ARM® Cortex® M4/M0+

Product Category

3.2 Peripheral Controllers

Product Description

USB 3.2 Gen 1 USB 5 Gbps Peripheral Controller

Security Features

N

Software Tools

ModusToolbox™

SRAM

1024 kByte

Temperature grade

Industrial

USB Speed

5 GBit/s

USB Standard

USB 3.2 Gen1

Apps

Industrial automation, Machine vision

Features

  • USB 3.2 Gen1 device port
  • USB-C orientation detection/correction
  • Dual-core ARM® Cortex® M4F/M0+ CPU
  • Integrated 512 KB flash
  • 1024 KB buffer memory
  • 16-lane LVDS interface @1.25 Gbps/lane
  • 32-bit LVCMOS interface @160 MHz DDR
  • 2x Quad-SPI (QSPI)
  • 7 serial communication blocks
  • USB full-speed device debug port
  • 2x I2S/PDM-PCM and GPIOs

Description

  • USB 5 Gbps performance
  • Up to 10-meter USB passive cable support
  • Smaller PCB footprint
  • Optimized BOM cost
  • No need for high-speed signal mux
  • Integrated flash
  • Quick start development
  • USB Video Class, UVC, firmware ready
  • USB3 Vision firmware ready
  • Application notes for HW & SW
