CYEL18V5123-200BKXE
  • CYEL18V5123-200BKXE

CYEL18V5123-200BKXE

Active and preferred

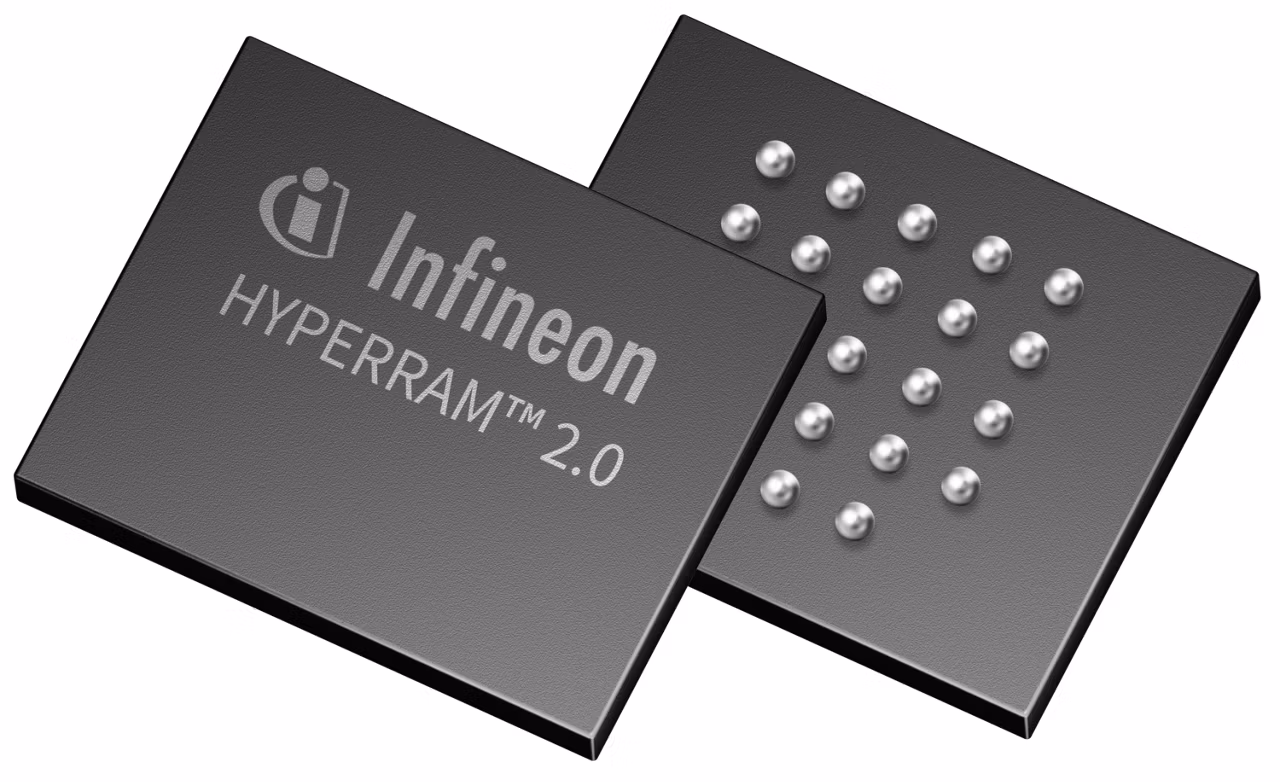

Infineon's pSRAM is a cutting-edge memory solution that combines the benefits of both DRAM and SRAM. Internally, it's structured like a DRAM, but externally, it behaves like an 8- channel serial SRAM. This innovative technology is packaged in a compact, low pin count plastic component that boasts high-speed performance and a small footprint, making it an ideal choice for applications in low-earth orbit satellites that require high bandwidth and are pin limited.

Infineon Technologies CYEL18V5123-200BKXE Product Info

16 April 2026 1

Parameters

Density

512 MBit

Family

KS-3

Interface Frequency (SDR/DDR) (MHz)

- / 200

Interfaces

xSPI (Octal)

Lead Ball Finish

Sn/Ag/Cu

Operating Temperature range

-40 °C to 125 °C

Operating Voltage range

1.7 V to 2 V

Operating Voltage

1.8 V

Package

PG-BGA-24

Qualification

Automotive

Features

  • 512 Mbit density
  • Octal SPI (x8) interface
  • 200 MHz per channel
  • Up to 1.6 Gbps data throughput
  • Single-chip select
  • -40⁰C to +125⁰C operating temperature
  • Low pin count 24-ball FBGA
  • 100Krad (Si) TID

Description

  • AEC-Q100 certified
  • ROHS compliant
  • Single Lot Date Code (SLDC)
  • 100% electrical testing coverage
  • Certificate of Conformance (CoC)
  • Radiation lot acceptance tested (TID)
