CDM10VD-2
  • CDM10VD-2

CDM10VD-2

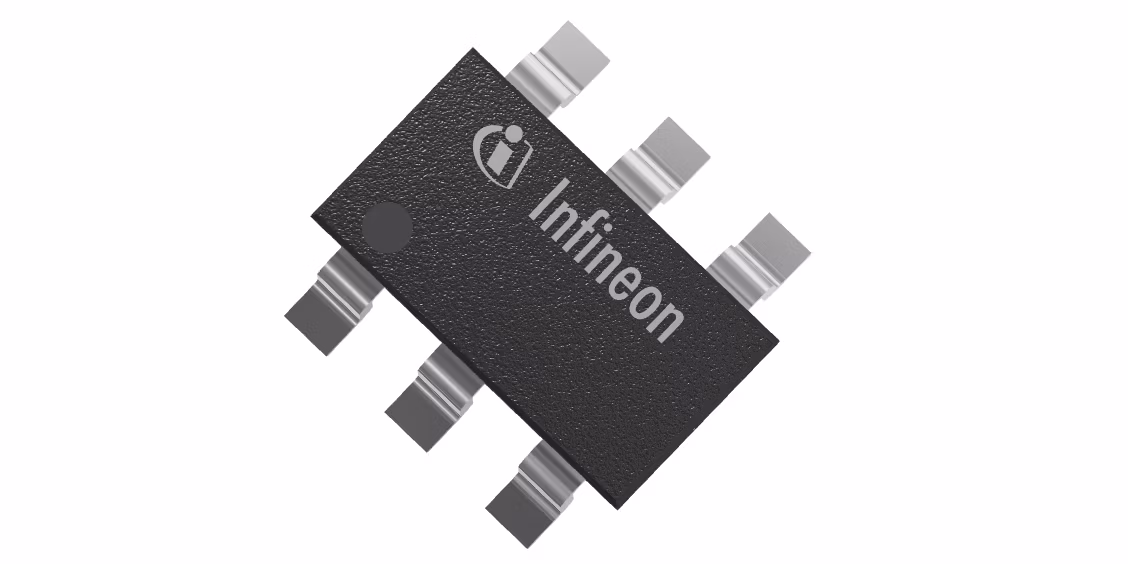

CDM10VD is a fully integrated 0-10V dimming interface IC and comes in a 6pin SOT package to cover space requirements on small PCBs. The IC can be used to transmit analog voltage-based signals from a 0-10V dimmer or potentiometer to the dimming or PWM input of a lighting controller IC in the form of a current based PWM signal to drive an external opto-coupler.

Infineon Technologies CDM10VD-2 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.2

Dimm-to-Off

Enabled

Dimmer/Resistor Bias Current

120 µA

Dimming hysteresis

Yes

Duty Cycle min

10 %

Iout

5 mA

Output Frequency (PWM)

1 kHz

Type

0-10V Dimming Interface IC

VS

25 V

Features

  • Minimum duty cycle: 5% or 10%
  • I out current to drive
  • PWM output frequency: 1kHz
  • Dimmer/resistor bias current: 120µA
  • Dim-to-off: disabled/enabled

Description

  • Wide input Voltage range: 11-25V
  • Replaces many external components
  • Minimum variation from device to device
