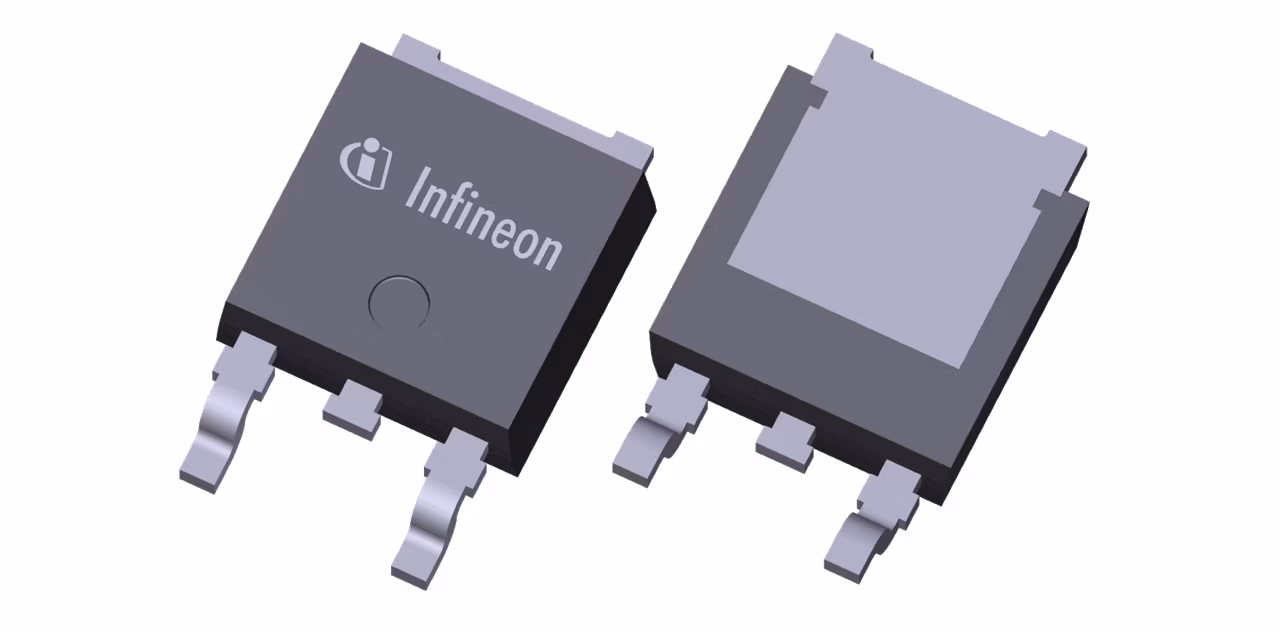

BTS3046SDL
  • BTS3046SDL

BTS3046SDL

Active and preferred

The device is monolithically integrated with a N channel vertical power FET and embedded protection functions. The BTS3046SDL is automotive qualified and can be used in 12V and 24V automotive and industrial applications.

Infineon Technologies BTS3046SDL Product Info

16 April 2026 0

Parameters

Channels

1

Classification

-

Control Interface

Discrete

Diagnostic Features

Output Status

Diagnostics

-

EAS/Avalanche Energy

140 mJ

EAS (Energy capability)

140 mJ

Family

Classic HITFET™ 24V

Features

24V COMPATIBLE

ID(lim) min

10 A

ID

3.6 A

IL(LIM) min

10 A

IL(nom)

3.6 A

IL (Short Circuit Current)

10 A

Load Current

4.3 A

Mounting

SMT

Nominal Load Current per channel

3.6 A

Operating Temperature range

-40 °C to 150 °C

Planned to be available until at least

2039

Protection strategy

Latch

RDS (on) (@ Tj = 150°C) max

134 mΩ

RDS (on) (@ Tj = 25°C)

54 mΩ

Recommended Operating Voltage max

60 V

toff (Turn OFF time) max

120 µs

ton (Turn ON time) max

100 µs

VDS max

60 V

Apps

Automotive body control module (BCM), Chassis control & safety, Programmable logic controller (PLC)

Features

  • Short circuit and over load protection
  • Thermal shutdown with latch behavior
  • ESD protection
  • Overvoltage protection
  • 3.3V & 5V compatible logic inputs
  • Analog driving possible
  • 12V and 24V usability
  • Green Product (RoHS compliant)
  • AEC Qualified
