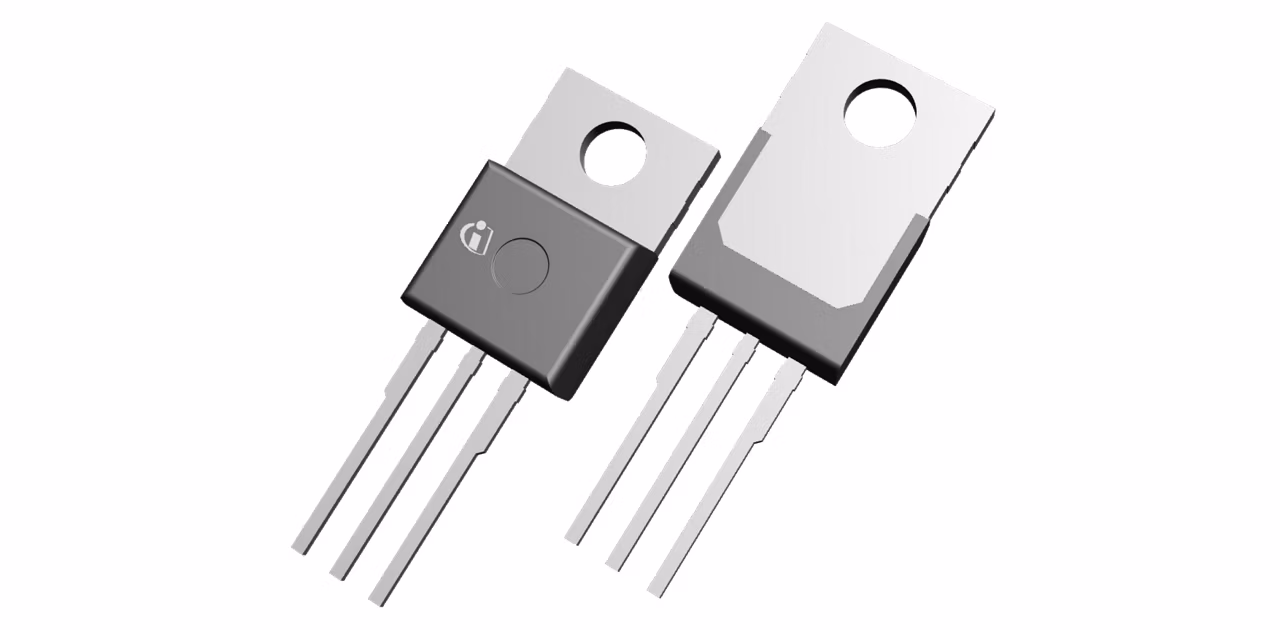

BTS117

Infineon Technologies BTS117 Product Info

16 April 2026 0

Channels	1
Classification	n.a
Diagnostics	n.a
EAS/Avalanche Energy	1000 mJ
EAS (Energy capability)	1000 mJ
Family	Classic HITFET™
Features	24V COMPATIBLE
ID(lim) min	7 A
ID	3.5 A
IL(LIM) min	7 A
IL(nom)	3.5 A
IL (Short Circuit Current)	7 A
Load Current	3.5 A
Mounting	THT
Nominal Load Current per channel	3.5 A
Operating Temperature range	-40 °C to 150 °C
Planned to be available until at least	n.a
Protection strategy	Latch
Ptot max	50 W
RDS (on) (@ Tj = 25°C)	90 mΩ
RDS (on) (@ Tj = 150°C) max	240 mΩ
Recommended Operating Voltage max	60 V
toff (Turn OFF time) max	150 µs
ton (Turn ON time) max	70 µs
VDS max	60 V
