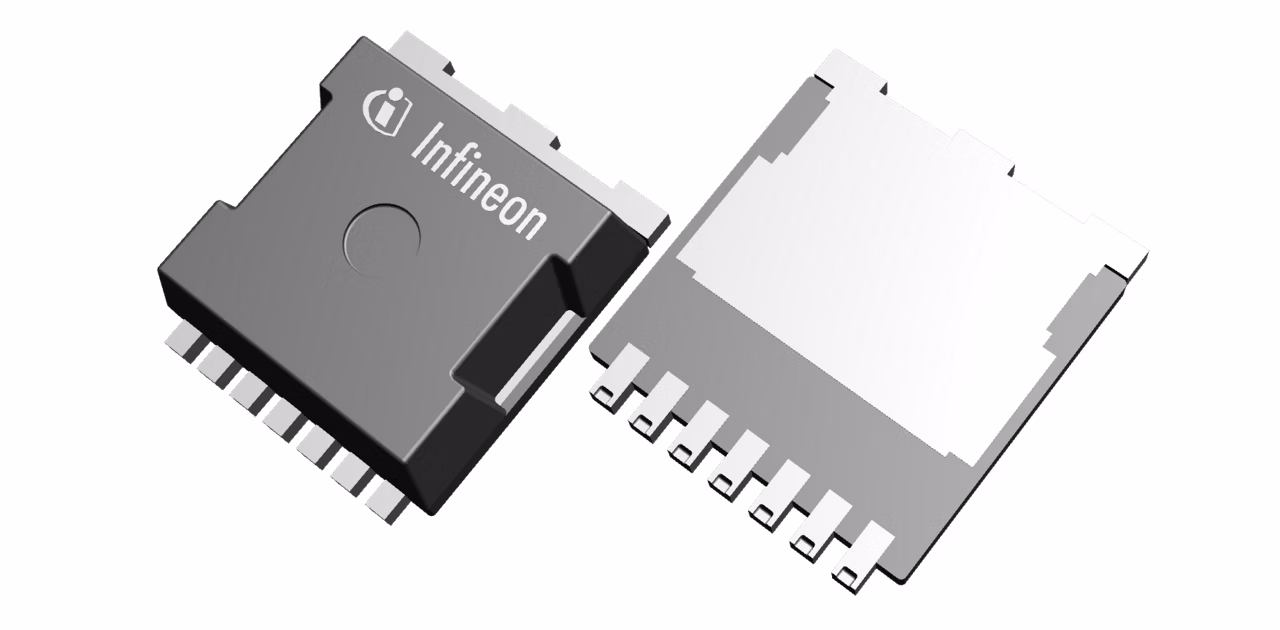

BTN9970LV

Active and preferred

The MOTIX™ BTN9970LV is a compact motor drive solution with an integrated driver IC, eliminating the need for a charge pump and reducing EMI. It offers easy microcontroller interfacing, logic level inputs, current sense diagnosis, protection against various faults, and a small HSOF-7-1 package. It differs from BTN9990LV in path resistance, overcurrent detection level, and differential current sense ratio (dkILIS).

Infineon Technologies BTN9970LV Product Info

16 April 2026 0

Parameters

Classification	ISO 26262-ready
MCU	No
Over current detection min	60 A
Planned to be available until at least	2037
Power Stage	Yes
Qualification	Automotive
RDSON_H(typ)	6.3 mΩ
RDSON_L(typ)	3.4 mΩ
Supply Voltage absolute max ratings	40 V

Apps

Domain controller for ADAS & autonomous driving, Automotive body electronics & power distribution, Automotive secondary power distribution unit, Automotive body control module (BCM), EV traction inverter

Features

Supply voltage: 8-18V (up to 40V)
Typ. 9.7 mΩ path resistance
Low 3.3µA quiescent current
Protection: overcurrent, UV, OT
60 A min overcurrent detection
8 selectable slew rates
UV with recovery delay
AEC-Q100/Q006 Grade 1)

Description

Integrated PMOS, NMOS, and Driver IC
Higher system reliability
Integrated diagnosis & protection
Half-& full-bridge support
Otimizes PCB layout
No charge pump, low EMI
Easy thermal protection
