BTN7030-1EPA

Active and preferred

The MOTIX™ BTN7030-1EPA is a protected half-bridge IC offering integrated driver, protection, and diagnosis. It's part of the MOTIX™ single half-bridge ICs family, integrated in SMART7 technology. Ideal for automotive body applications like door lock, trunk lock, and cinching latch, it's also suitable for individual half-bridge needs.

Infineon Technologies BTN7030-1EPA Product Info

16 April 2026 0

Parameters

Classification	QM
MCU	No
Over current detection min	14 A
Planned to be available until at least	2039
Power Stage	Yes
Qualification	Automotive
RDSON_H(typ)	12 mΩ
RDSON_L(typ)	20 mΩ
Supply Voltage absolute max ratings	35 V

Apps

Automotive body electronics & power distribution, Automotive secondary power distribution unit, Automotive body control module (BCM), Automotive instrument cluster

Features

Max. 62 mΩ path resistance
14 A current limitation @ 150°C
Current sense capability
Overtemperature shut down
Undervoltage shut down
Cross current protection
Short circuit detection
Logic level input driver
Operation up to 28 V
RoHS compliant
AEC qualified

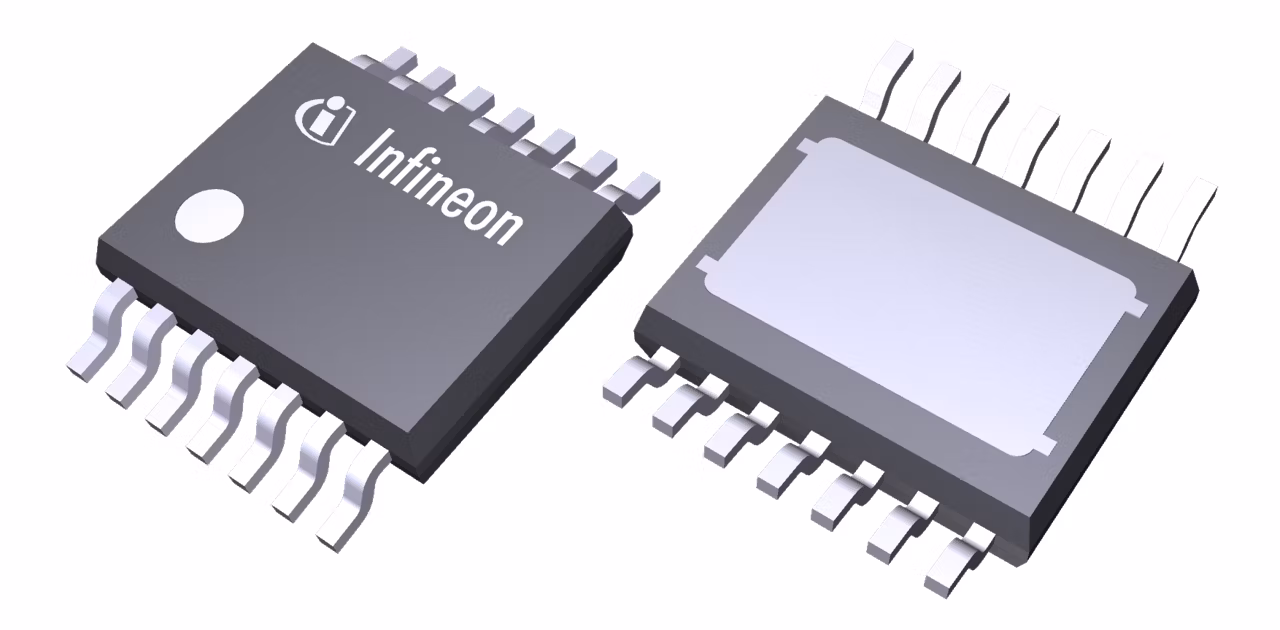

PG-TSDSO-14 package

Description

Easy use
Fast design-in
Cost and board space optimization
Improved thermal behaviour
Functional safety
Green Product
