BSZ16DN25NS3 G
  • BSZ16DN25NS3 G

BSZ16DN25NS3 G

Active and preferred

Infineon's 250V OptiMOS™ products are performance leading benchmark technologies, perfectly suited for synchronous rectification in 48V systems, DC-DC converters, uninterruptable power supplies (UPS) and inverters for DC motor drives.

Infineon Technologies BSZ16DN25NS3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.71

Ciss

690 pF

Coss

44 pF

ID (@25°C) max

10.9 A

IDpuls max

44 A

Operating Temperature range

-55 °C to 150 °C

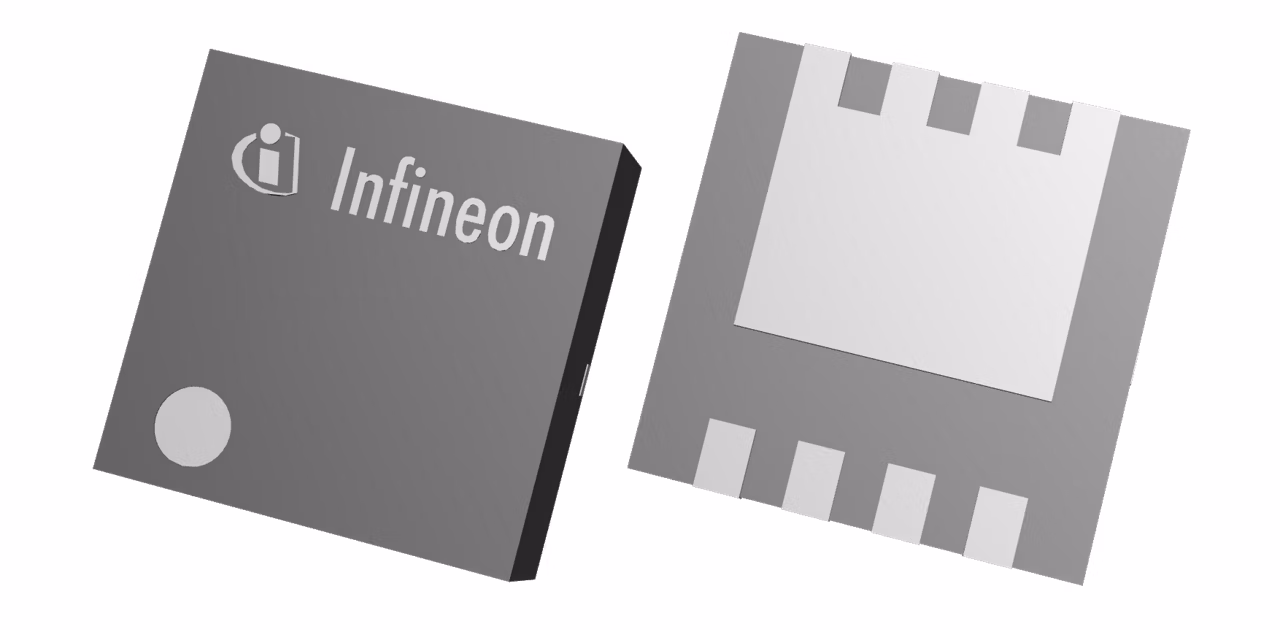

Package

PQFN 3.3 x 3.3

Polarity

N

Ptot max

62.5 W

QG (typ @10V)

8.6 nC

RDS (on) (@10V) max

165 mΩ

Rth

2 K/W

VDS max

250 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Features

  • Industry’s lowest R DS(on)
  • Lowest Qg and Qgd
  • Lowest FOM RoHS compliant - MSL 1 rated

Description

  • Highest efficiency
  • Highest Power density
  • Lowest board space consumption
  • Minimal device paralleling required
  • System cost improvement
  • Environmentally friendly
  • Easy-to-design-in products
