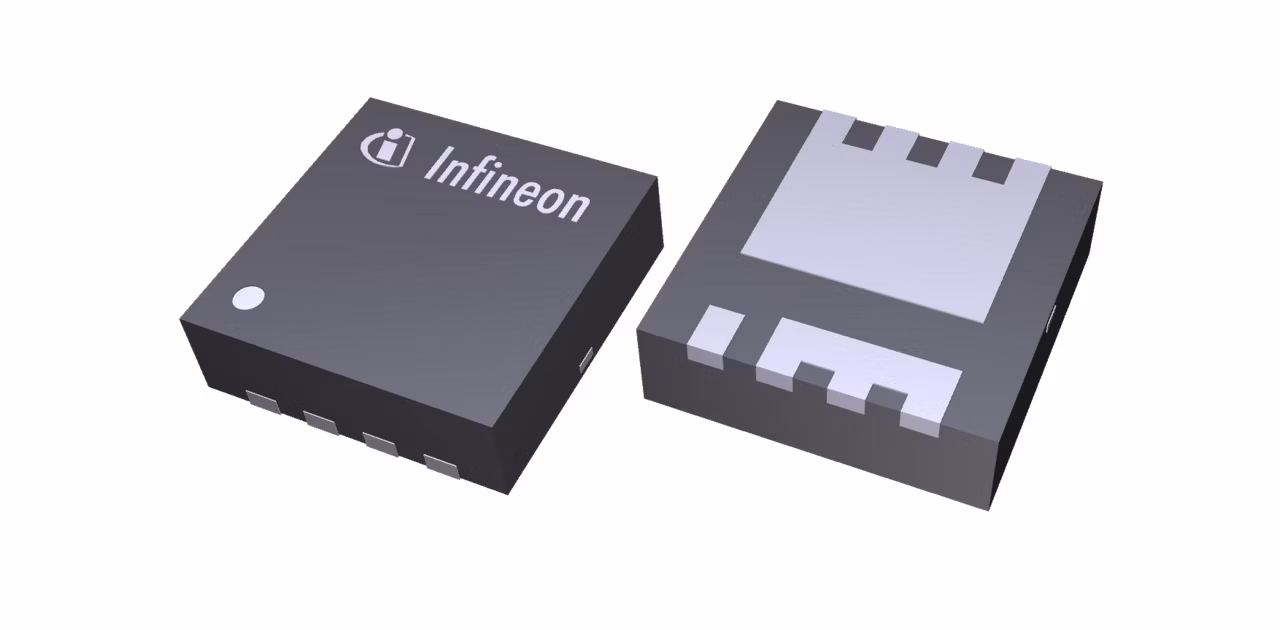

BSZ0994NS
  • BSZ0994NS

BSZ0994NS

With the OptiMOS™ 5 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSZ0994NS Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.23

ID (@25°C) max

13 A

IDpuls max

52 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3 Fused Lead

Pin Count

8 Pins

Polarity

N

Ptot max

2.1 W

Qgd

1.6 nC

QG (typ @4.5V)

5.2 nC

QG (typ @10V)

10 nC

RDS (on) (@4.5V) max

9 mΩ

RDS (on) (@4.5V LL) max

9 mΩ

RDS (on) (@10V) max

7 mΩ

RthJA max

60 K/W

RthJC max

4.9 K/W

Rth

4.9 K/W

VDS max

30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.62 V

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Reduction of overall system costs
  • Operation at high-switching frequency
