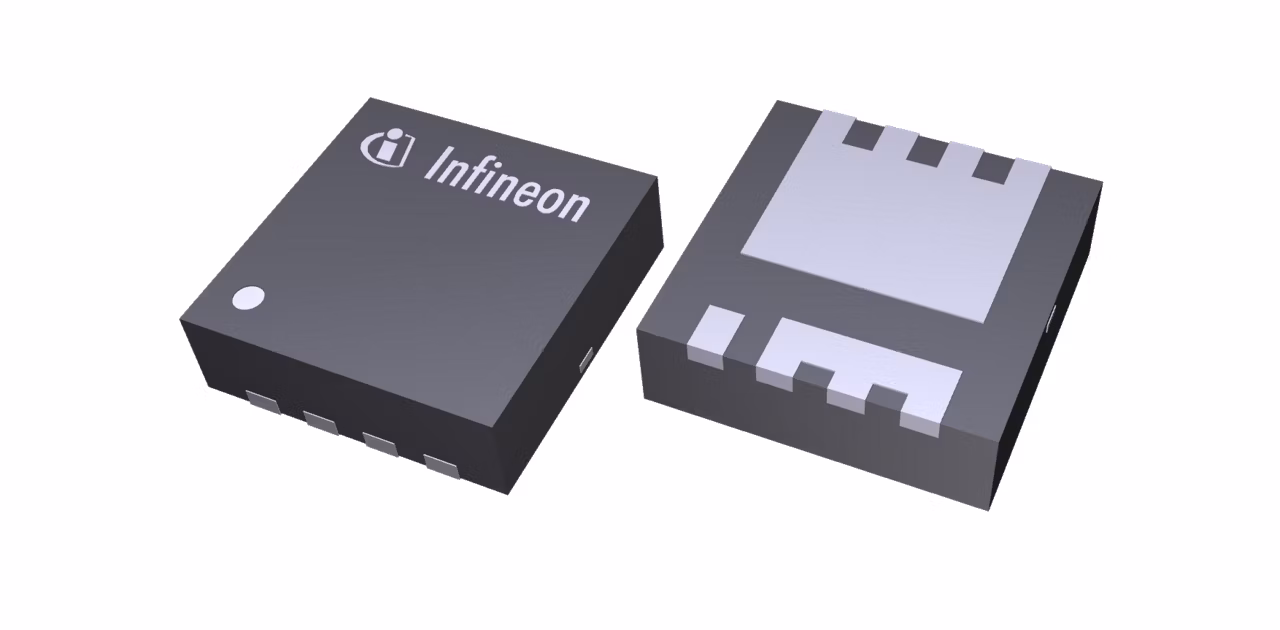

BSZ0589NS
  • BSZ0589NS

BSZ0589NS

With the OptiMOS™ 5 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSZ0589NS Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

0.27

ID (@25°C) max

17 A

IDpuls max

68 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3 Fused Lead

Pin Count

8 Pins

Polarity

N

Qgd

1.3 nC

QG (typ @10V)

11 nC

QG (typ @4.5V)

5.2 nC

RDS (on) (@10V) max

4.4 mΩ

RDS (on) (@4.5V) max

5.3 mΩ

RDS (on) (@4.5V LL) max

5.3 mΩ

RthJA max

60 K/W

RthJC max

4.6 K/W

Rth

4.6 K/W

VDS max

30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Reduction of overall system costs
  • Operation at high-switching frequency
