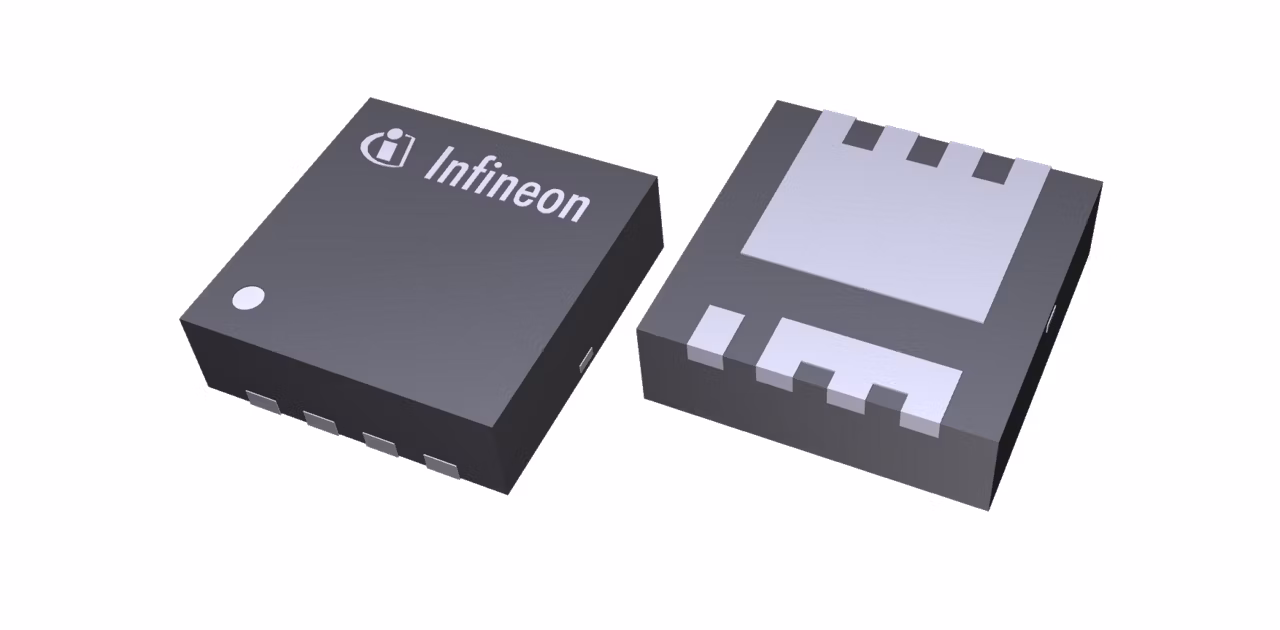

BSZ0506NS
  • BSZ0506NS

BSZ0506NS

Active and preferred

With the OptiMOS™ 5 25V and 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSZ0506NS Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.23

Ciss

700 pF

Coss

220 pF

ID (@25°C) max

40 A

IDpuls max

160 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Pin Count

8 Pins

Polarity

N

QG (typ @4.5V)

5.2 nC

QG (typ @10V)

11 nC

RDS (on) (@4.5V LL) max

5.3 mΩ

RDS (on) (@4.5V) max

5.3 mΩ

RDS (on) (@10V) max

4.4 mΩ

RthJA max

60 K/W

RthJC max

4.6 K/W

Rth

4.6 K/W

Special Features

Logic Level

VDS max

30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Apps

Medium voltage IBC (48 V), Power adapters and chargers, Industrial automation, General purpose motor drive

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Highest power density with PQFN 3.3x3.3
  • Reduction of overall system costs
  • Operation at high-switching frequency
