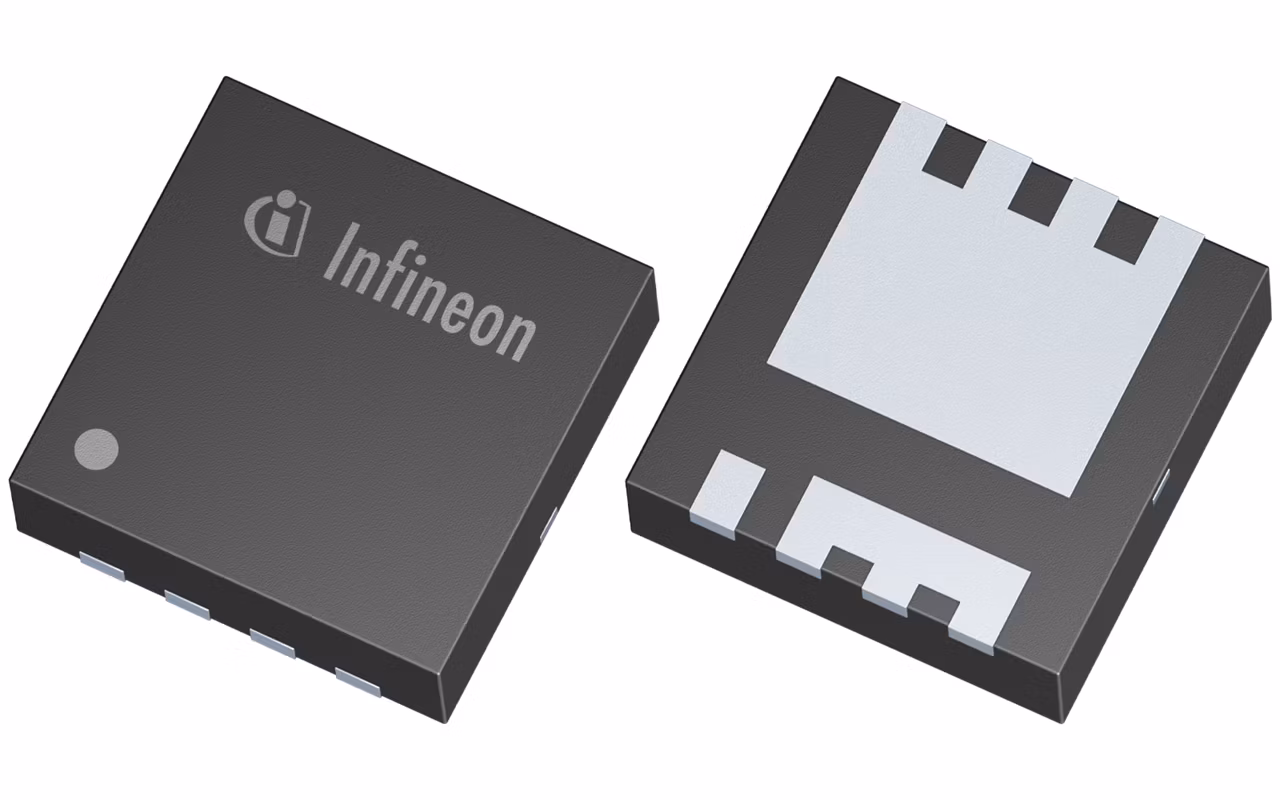

BSZ025N04LS
  • BSZ025N04LS

BSZ025N04LS

Infineon's 40V and 60V product families feature not only the industry’s lowest R DS(on) but also a perfect switching behavior for fast switching applications. 15% lower R DS(on) and 31% lower figure of merit (R DS(on) x Q g) compared to alternative devices has been realized by advanced thin wafer technology.

Infineon Technologies BSZ025N04LS Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.55

Ciss

2630 pF

Coss

750 pF

ID (@25°C) max

126 A

IDpuls max

504 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Pin Count

8 Pins

Polarity

N

Ptot max

69 W

QG (typ @10V)

37 nC

QG (typ @4.5V)

19 nC

RDS (on) (@10V) max

2.5 mΩ

RDS (on) (@4.5V) max

3.2 mΩ

RDS (on) (@4.5V LL) max

3.2 mΩ

RthJA max

60 K/W

RthJC max

1.8 K/W

Rth

1.8 K/W

VDS max

40 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.55 V

Apps

Medium voltage IBC (48 V), Edge computing, Telecommunications infrastructure

Features

  • Optimized for synchronous rectification
  • 15% lower RDSon than others
  • 31% better FOM over similar devices
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
