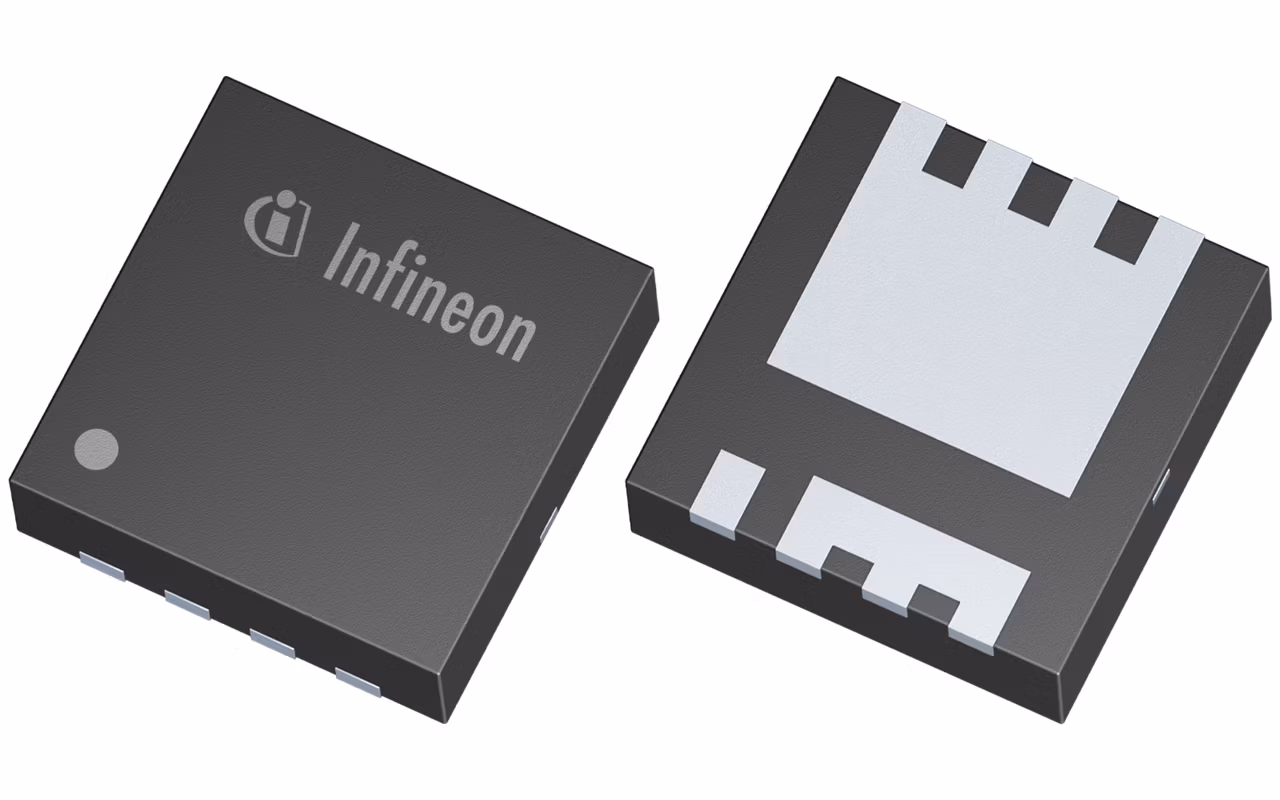

BSZ017NE2LS5I
  • BSZ017NE2LS5I

BSZ017NE2LS5I

Active

With the OptiMOS™ 5 25V and 30V product family, Infineon offers benchmark solutions by enabling highest power density and energy efficiency, both in standby and full operation.

Infineon Technologies BSZ017NE2LS5I Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.38

Ciss

1500 pF

Coss

750 pF

ID (@25°C) max

134 A

IDpuls max

536 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Pin Count

8 Pins

Polarity

N

Ptot max

50 W

QG (typ @4.5V)

10.5 nC

QG (typ @10V)

22 nC

RDS (on) (@4.5V LL) max

2.3 mΩ

RDS (on) (@4.5V) max

2.3 mΩ

RDS (on) (@10V) max

1.7 mΩ

RthJA max

60 K/W

RthJC max

2.5 K/W

Rth

2.5 K/W

Special Features

Logic Level, Monolithically Integrated Schottky-like Diode

VDS max

25 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.8 V

Apps

Vacuum cleaners, Power optimizer solutions for scalable PV systems

Features

  • Best-in-class on-state resistance
  • Benchmark switching performance
  • RoHS compliant and halogen free
  • Optimized EMI behavior

Description

  • Highest efficiency
  • Highest power density with PQFN 3.3x3.3
  • Reduction of overall system costs
  • Operation at high-switching frequency
