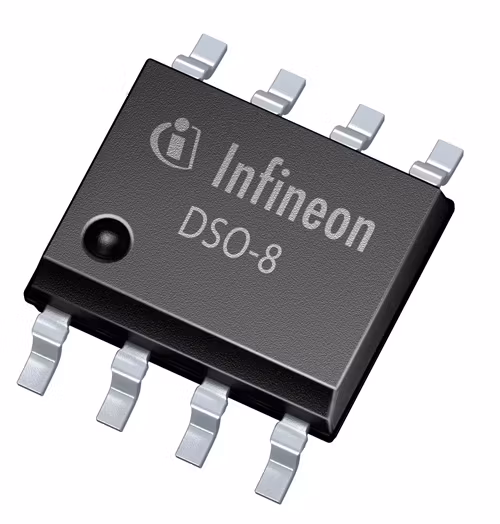

BSO220N03MD G
  • BSO220N03MD G

BSO220N03MD G

Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Infineon Technologies BSO220N03MD G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.24

Ciss

600 pF

Coss

230 pF

ID (@25°C) max

7.7 A

IDpuls max

54 A

Operating Temperature range

-55 °C to 150 °C

Package

SO-8

Polarity

N+N

Ptot max

2 W

QG (typ @10V)

7.8 nC

QG (typ @4.5V)

3.8 nC

RDS (on) (@10V) max

22 mΩ

RDS (on) (@4.5V LL) max

27 mΩ

RDS (on) (@4.5V) max

27 mΩ

Rth

50 K/W

VDS max

30 V

VGS(th) range

1 V to 2.1 V

VGS(th)

1.6 V

Apps

Medium voltage IBC (48 V)

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance
  • Easy to design-in

Description

  • Increased battery lifetime
  • Improved EMI makes ext snubbers obsolete
  • Saving costs
  • Space saving
  • Reducing power losses
