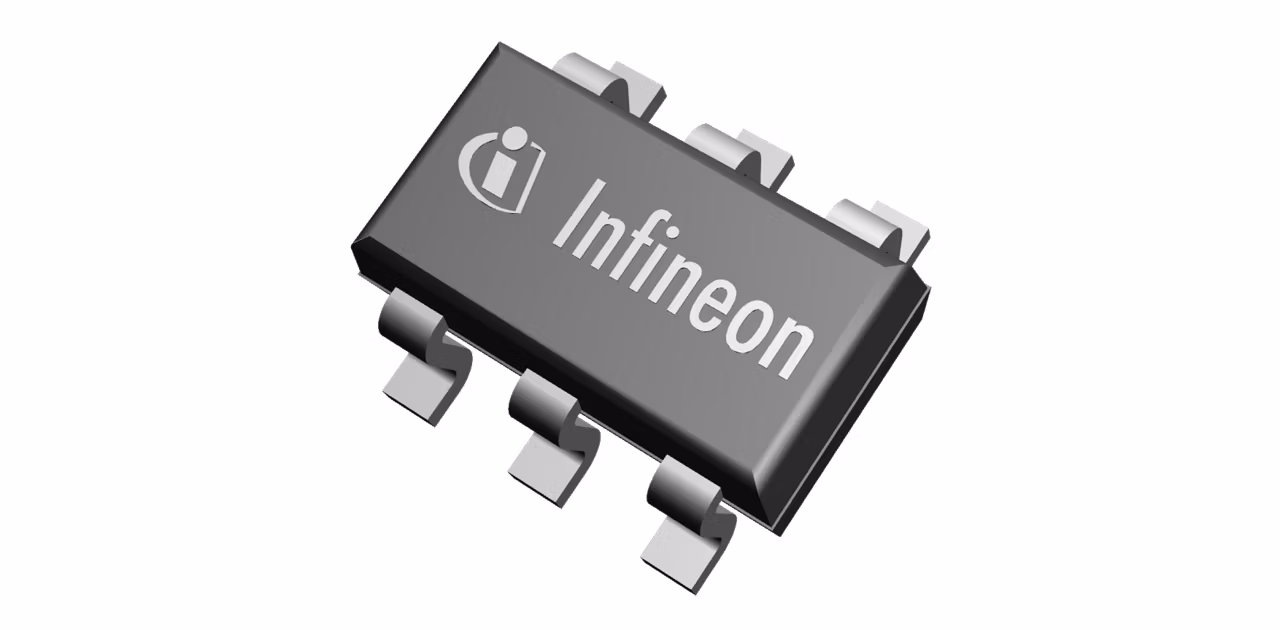

BSL806N
  • BSL806N

BSL806N

Active

With an optimal price/performance ratio and small footprint packages Infineon´s small signal MOSFETs are the best fit for a wide range of space-constrained applications and circuits. Thanks to the product’s qualification according to AEC Q101 automotive standards, this N-channel MOSFET is ideal for automotive and other quality-critical products.

Infineon Technologies BSL806N Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

0.17

Ciss

370 pF

Coss

118 pF

ID (@25°C) max

2.3 A

IDpuls max

9.3 A

Mode

Enhancement

Mounting

SMD

Operating Temperature max

150 °C

Operating Temperature min

-55 °C

Package

TSOP-6 dual

Pin Count

6 Pins

Polarity

N+N

Ptot max

0.5 W

QG (typ @4.5V) max

1.7 nC

RDS (on) (@1.8V) max

82 mΩ

RDS (on) (@2.5V) max

57 mΩ

RDS (on) max

57 mΩ

RthJA max

250 K/W

Special Features

Dual

VDS max

20 V

VGS(th) range

0.3 V to 0.75 V

VGS(th)

0.55 V

Features

  • Dual N-channel
  • Ultra-logic level
  • Pb-free lead plating; RoHS compliant
  • Qualified according to AEC Q101

Description

  • Compact design
  • Drive with 1.8V VGS
  • Environmentally friendly
  • Automotive standard qualification
