BSG0810NDI
  • BSG0810NDI

BSG0810NDI

Active and preferred

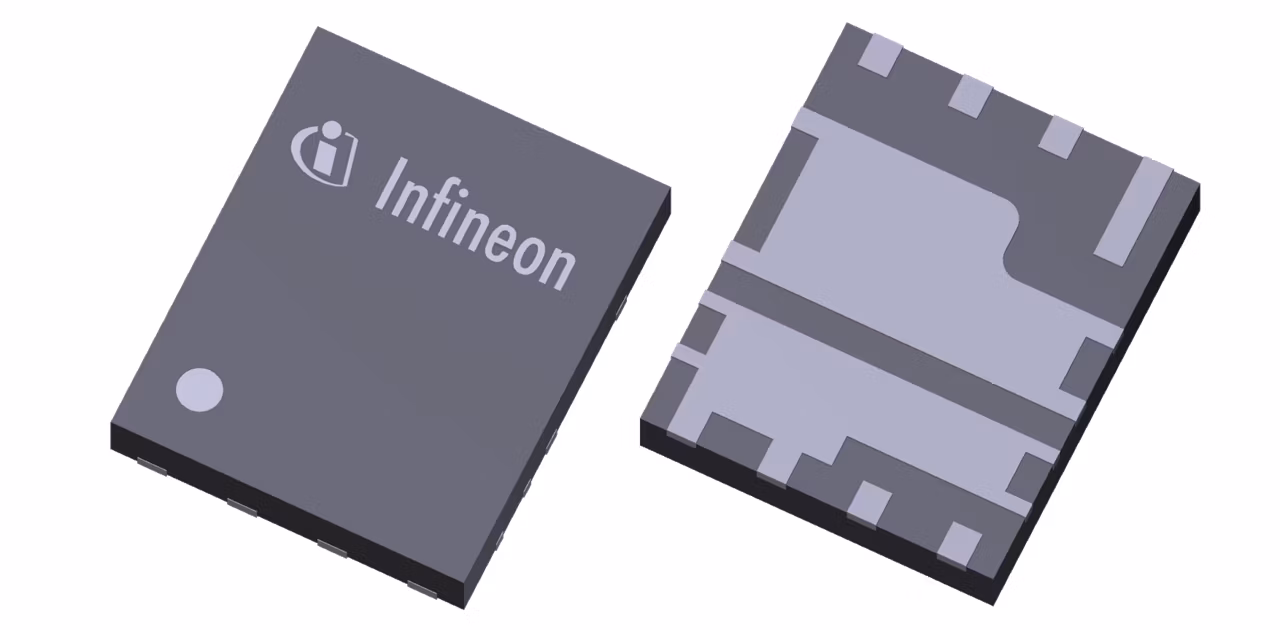

OptiMOS™ 5 Power Block is a leadless SMD package in a 5.0x6.0mm² package outline, including a low-side and a high-side MOSFET in a synchronous buck converter configuration. By replacing two separate discrete packages, such as SO8 or SuperSO8, with the OptiMOS™ 5 Power Block, customers can shrink their designs up to 85%. Standardizing power packages benefits the customer, as the number of different package outlines available in the market place is minimized.

Infineon Technologies BSG0810NDI Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.87

Ciss

2300 pF, 770 pF

Coss

390 pF, 1400 pF

ID (@25°C) max

50 A, 50 A

IDpuls max

160 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

Power Block 5x6

Pin Count

8 Pins

Polarity

N+N

Ptot max

2.5 W, 2.5 W

QG (typ @4.5V)

5.6 nC, 16 nC

RDS (on) (@4.5V LL) max

4 mΩ, 1.2 mΩ

RDS (on) (@4.5V) max

4 mΩ, 1.2 mΩ

RDS (on) (@10V) max

3 mΩ, 0.9 mΩ

RthJA max

50 K/W

RthJC max

1.8 K/W, 4.3 K/W

Rth max

1.8 K/W, 4.3 K/W

Special Features

Logic Level, Monolithically Integrated Schottky-like Diode

VDS max

25 V, 25 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Apps

Edge computing

Features

  • 50A max average load current
  • Source-down low side MOSFET
  • Internally connected low and high side
  • Kelvin connection for efficient driving

Description

  • Compact layout for DC-DC converters
  • Optimized layout w/ low loop inductance
  • Good thermal performance
