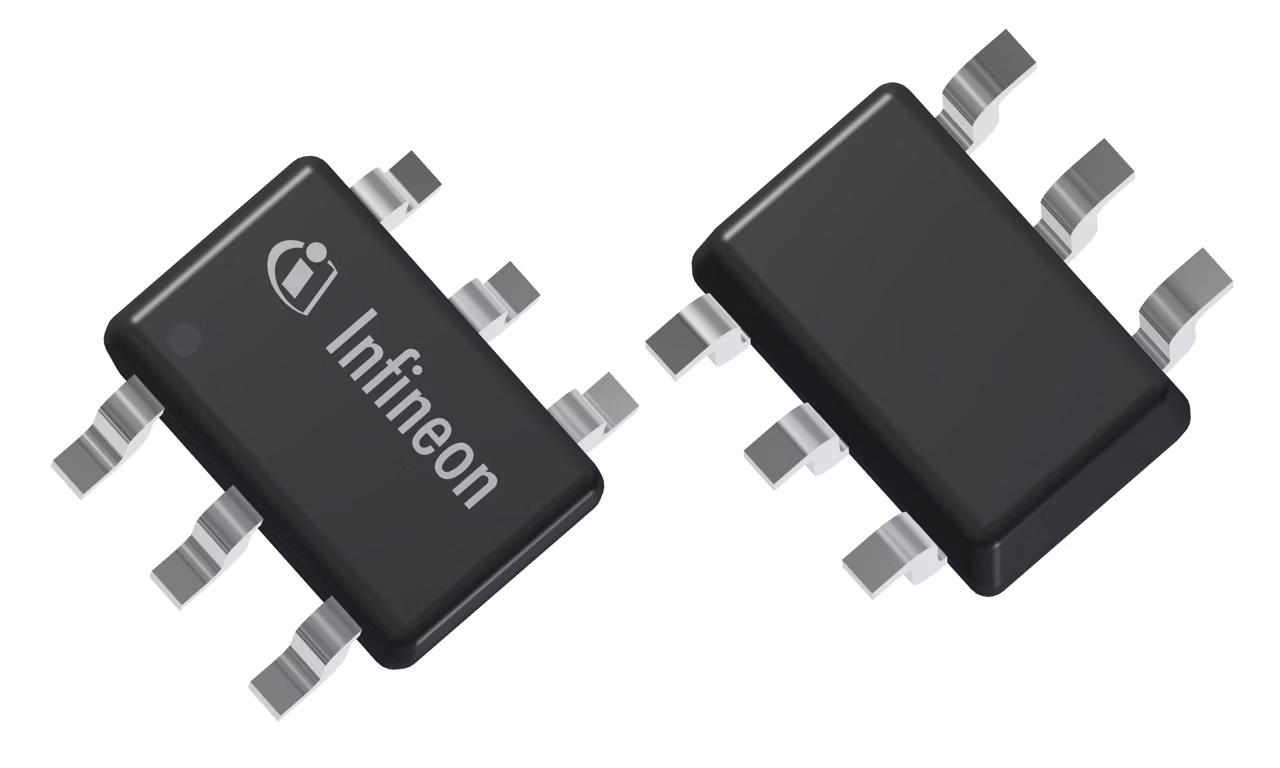

BSD316SN
  • BSD316SN

BSD316SN

Infineon technologies offers automotive and industrial manufacturers a broad portfolio of N and P-Channel Small Signal MOSFETs that meet and exceed the highest quality requirements in well-known industry standard packages. With unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED lighting, ADAS, body control units, SMPS and motor control.

Infineon Technologies BSD316SN Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.05

Ciss

71 pF

Coss

26 pF

ID (@25°C) max

1.4 A

IDpuls max

5.6 A

Operating Temperature max

150 °C

Operating Temperature min

-55 °C

Package

SOT-363

Polarity

N

Ptot max

0.5 W

QG

0.6 nC

RDS (on) (@10V) max

160 mΩ

RthJA max

250 K/W

Special Features

Small Signal

VDS max

30 V

VGS(th) range

1.2 V to 2 V

Features

  • Enhancement mode
  • Logic level
  • Avalanche rated
  • Fast switching
  • dv/dt rated
Pb-free lead-plating
  • RoHS compliant, halogen-free
  • Qualified according to Automotive Std
  • PPAP capable

    • Description

    • Low RDS(on) for high efficency
    • Small packages save PCB space
    • Best-in-class quality & reliability
