BSC670N25NSFD
  • BSC670N25NSFD

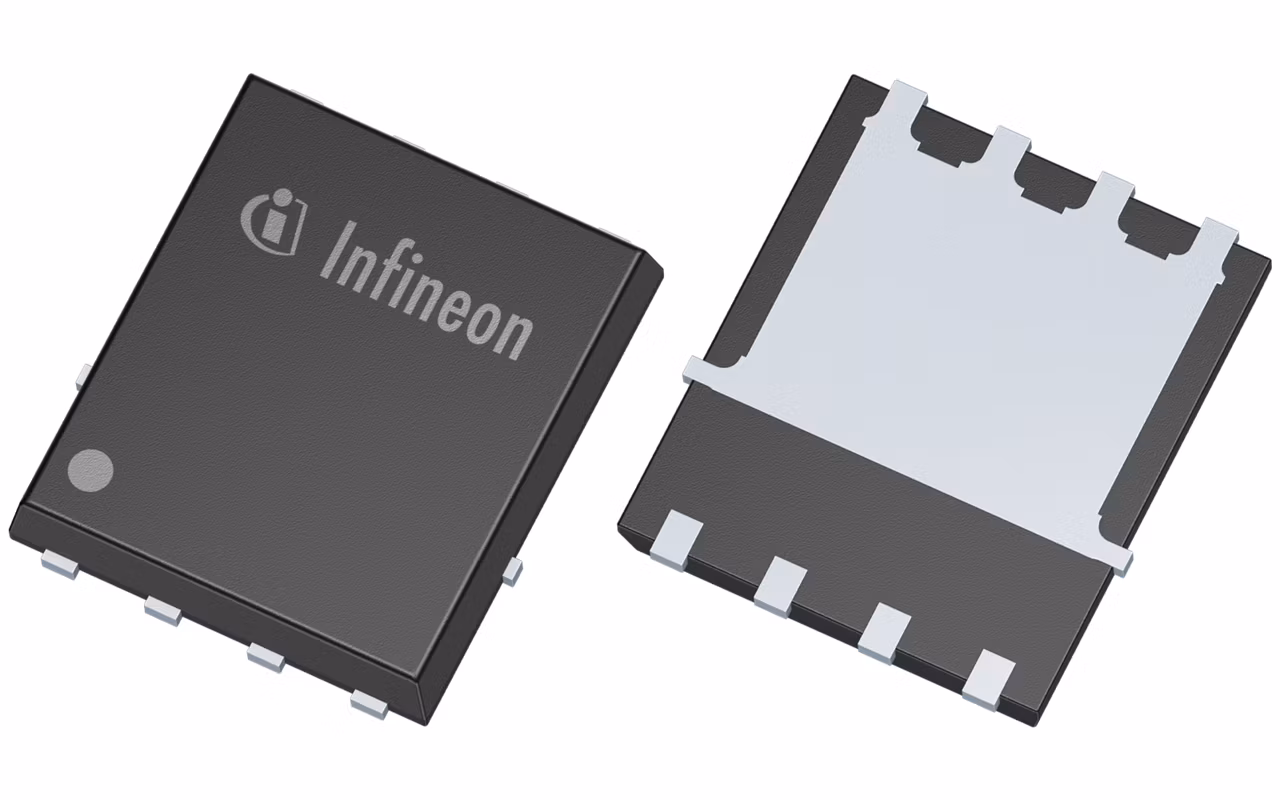

BSC670N25NSFD

OptiMOS™ Fast Diode (FD) 200V, 250V and 300V is optimized for body diode hard commutation. These devices are the perfect choice for hard switching applications such as telecom, industrial power supplies, Class D audio amplifiers, motor control and DC-AC inverter.

Infineon Technologies BSC670N25NSFD Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

1.31

ID (@25°C) max

24 A

IDpuls max

96 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

150 W

Qgd

2.9 nC

QG (typ @10V)

22 nC

RDS (on) (@10V) max

67 mΩ

RthJA max

50 K/W

RthJC max

1 K/W

Rth

0.6 K/W

Special Features

Fast Diode

VDS max

250 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Features

  • Improved hard commutation ruggedness
  • Optimized hard switching behavior
  • Industry’s lowest R ds(on)
  • RoHS compliant - halogen free

Description

  • Highest system reliability
  • System cost reduction
  • Highest efficiency and power density
  • Easy-to-design products
