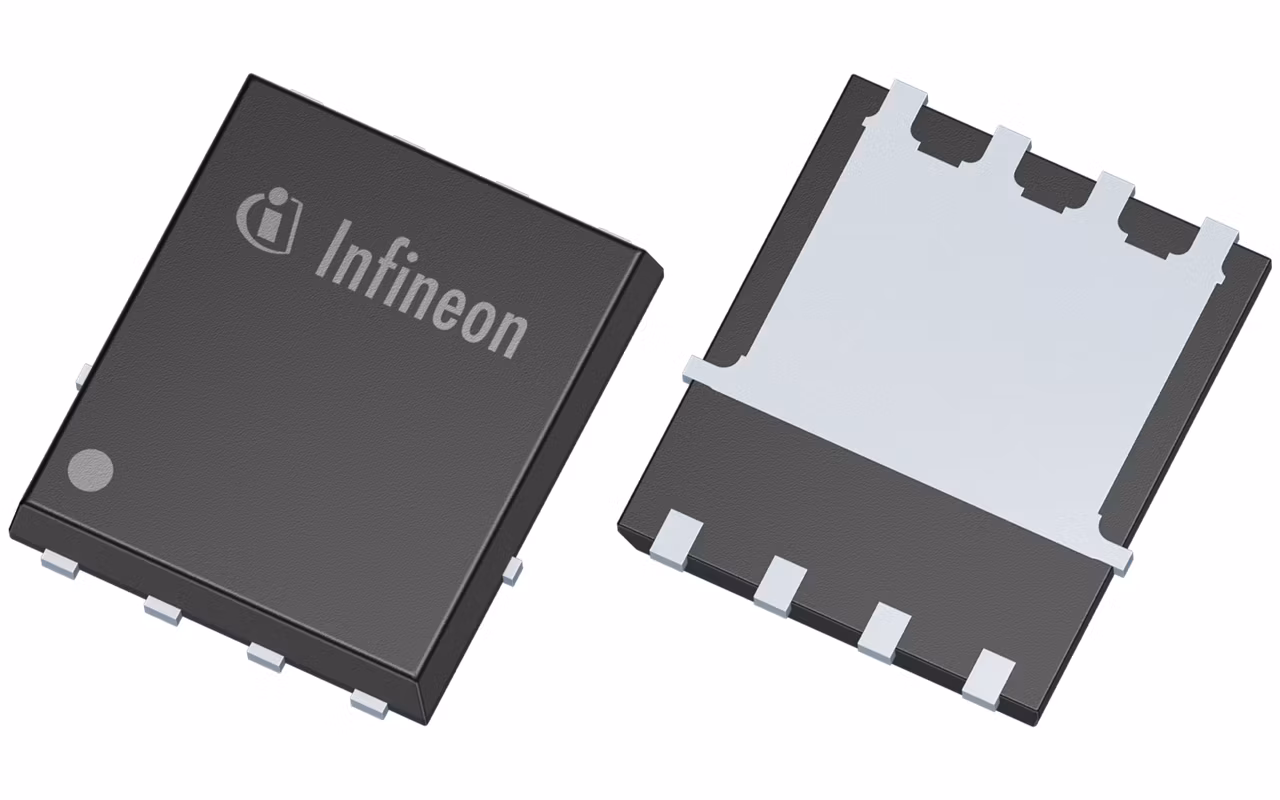

BSC079N03LSC G
  • BSC079N03LSC G

BSC079N03LSC G

Infineon's 34V OptiMOS™ 3 MOSFET is the perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops . In addition this device can be used for a broad range of industrial applications including motor control and fast switching DC-DC converter.

Infineon Technologies BSC079N03LSC G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.16

ID (@25°C) max

50 A

IDpuls max

200 A

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

30 W

QG (typ @10V)

14 nC

QG (typ @4.5V)

6.8 nC

RDS (on) (@10V) max

7.9 mΩ

RDS (on) (@4.5V) max

12.7 mΩ

RDS (on) (@4.5V LL) max

12.7 mΩ

RthJA max

50 K/W

RthJC max

4.1 K/W

VDS max

34 V

VGS(th) range

1 V to 2.2 V

Features

  • Excellent gate charge x R DS(on) product (FOM)
  • Very low on-resistance R DS(on)
  • Ideal for fast switching applications
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
