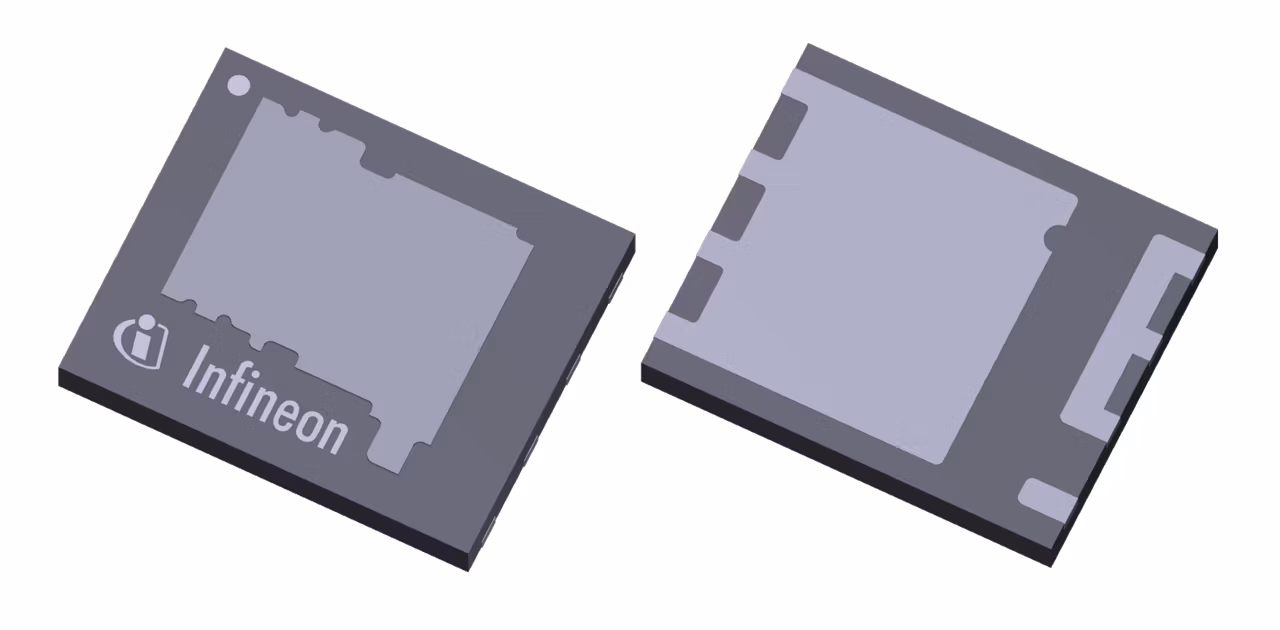

BSC040N10NS5SC
  • BSC040N10NS5SC

BSC040N10NS5SC

Active and preferred

OptiMOS™ 5 power MOSFETs 100 V in SuperSO8 DSC (dual-side cooling) package offers thermal benefits of dual-side cooling with industry-standard footprint. About 30% of the heat generated on the MOSFET die is transferred through the top and less heat is transferred to the PCB, thus, either the PCB runs cooler at the same power dissipation improving reliability, or more power can be handled by the MOSFET for higher power density.

Infineon Technologies BSC040N10NS5SC Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.34

ID (@25°C) max

140 A

IDpuls max

560 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6 DSC

Polarity

N

Ptot max

167 W

QG (typ @10V)

58 nC

RDS (on) (@10V) max

4 mΩ

Special Features

Dual-Side Cooling

VDS max

100 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Apps

Medium voltage IBC (48 V), Automotive secondary power distribution unit, Light electric vehicle solutions, Telecommunications infrastructure, DIN rail power supply solutions

Features

  • High performance silicon technology
  • Low top-side RthJC(0.72 K/W)
  • Package rated to TJmax=175ºC
  • Industry standard footprint
  • Compatible with SuperSO8 and PQFN 5x6

Description

  • Low losses for high system efficiency
  • Improved heat dissipation
  • Superior power handling & longer life
  • Drop-in replace SuperSO8 & PQFN 5x6
