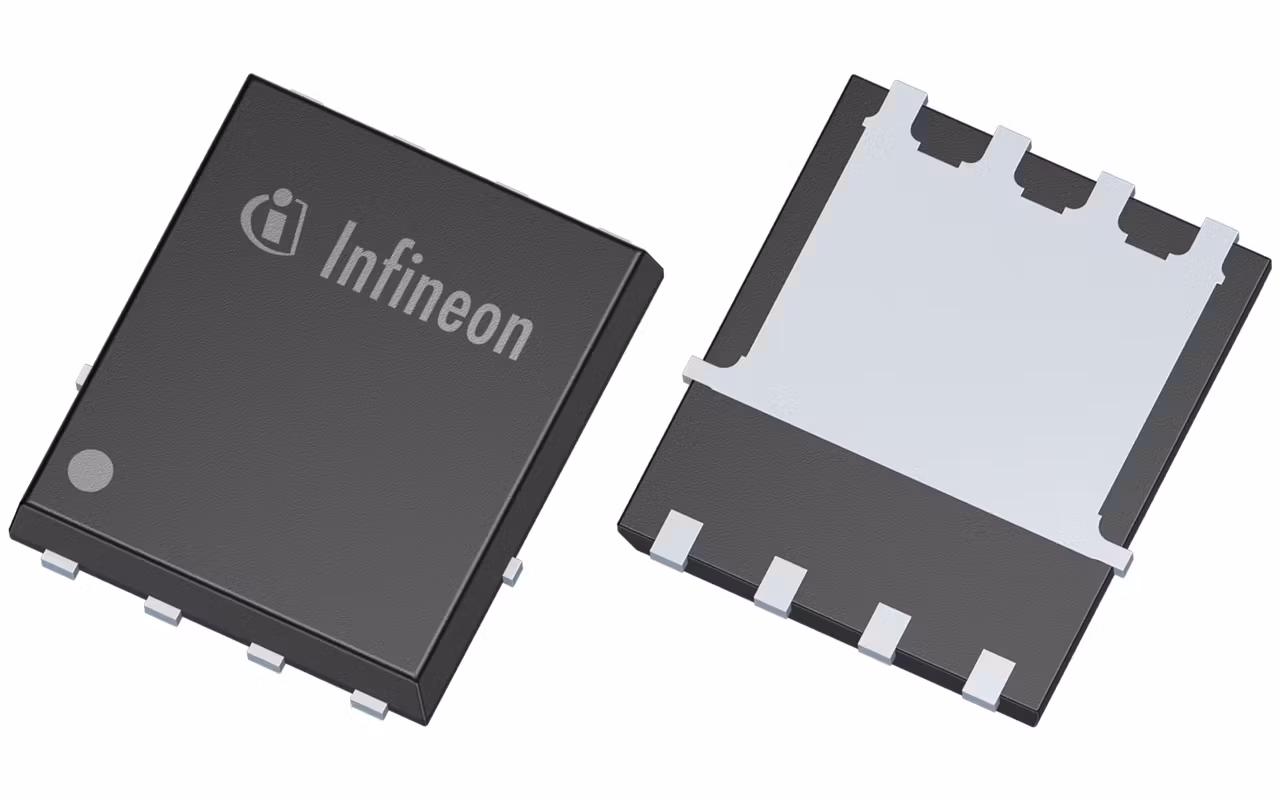

BSC018N04LS G
  • BSC018N04LS G

BSC018N04LS G

OptiMOS™ 40V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition these devices can be used for a broad range of industrial applications including motor control and fast switching DC-DC converter.

Infineon Technologies BSC018N04LS G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.48

Ciss

8900 pF

Coss

1800 pF

ID (@25°C) max

209 A

IDpuls max

836 A

Operating Temperature range

-55 °C to 150 °C

Package

SuperSO8 5x6

Polarity

N

Ptot max

125 W

QG (typ @4.5V)

54 nC

QG (typ @10V)

113 nC

RDS (on) (@10V) max

1.8 mΩ

RDS (on) (@4.5V) max

2.5 mΩ

RDS (on) (@4.5V LL) max

2.5 mΩ

RthJC max

1 K/W

Rth

1 K/W

Special Features

Logic Level

VDS max

40 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Apps

Cordless power tools and outdoor power equipment

Features

  • Charge x RDS(on)product (FOM)
  • Low on-resistance R DS(on)
  • Ideal for fast switching applictions
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
Very low voltage overshoot
