BSC014N04LST
  • BSC014N04LST

BSC014N04LST

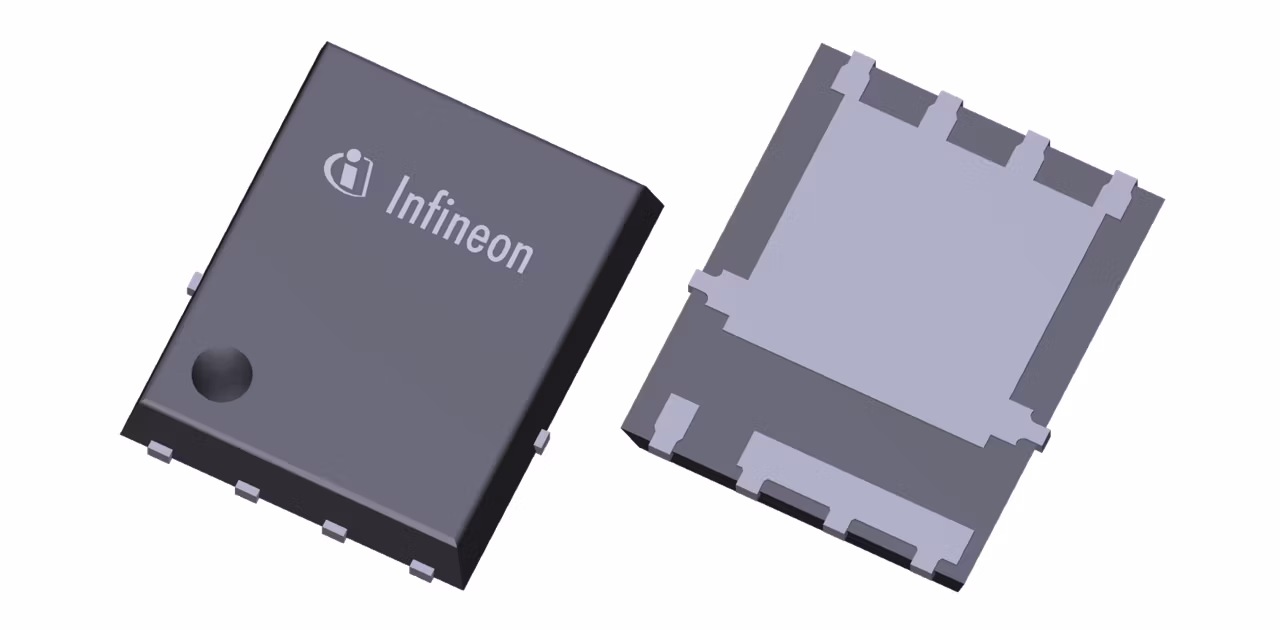

OptiMOS™ 5 power MOSFET in SuperSO8 package offers the latest technology together with temperature improvements in the package. This new combination enables higher power density as well as improved robustness. Compared to lower rated MOSFET devices, the 175°C TJ_MAX feature offers either more power at a higher operating junction temperature or longer lifetime at the same operating junction temperature.

Infineon Technologies BSC014N04LST Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.6

ID (@25°C) max

205 A

IDpuls max

820 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

115 W

Qgd

9.8 nC

QG (typ @10V)

61 nC

RDS (on) (@4.5V) max

1.9 mΩ

RthJA max

50 K/W

RthJC max

1.3 K/W

Rth

0.8 K/W

VDS max

40 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.52 V

Features

  • Low RDS(on)
  • Optimized for synchronous rectification
  • Enhanced 175°C capability in SuperSO8

Description

  • Longer life time
  • Highest efficiency and power density
  • Highest system reliability
  • Thermal robustness
