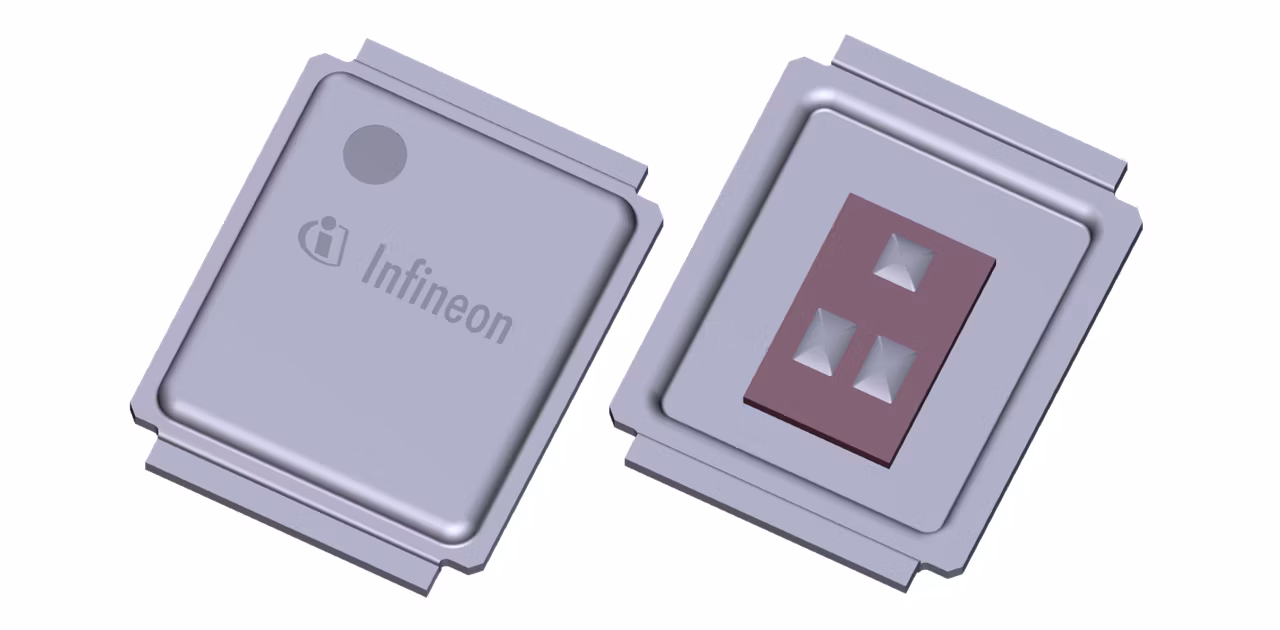

BSB104N08NP3 G
  • BSB104N08NP3 G

BSB104N08NP3 G

Active

OptiMOS™ is the market leader in highly efficient solutions for power generation (e.g. solar micro inverter), power supply (e.g. server and telecom) and power consumption (e.g. electric vehicle).

Infineon Technologies BSB104N08NP3 G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.4, 0.4

Ciss

1600 pF

Coss

430 pF

ID (@25°C) max

50 A

IDpuls max

200 A

Micro-stencil

IRF66MP-25

Operating Temperature range

-40 °C to 150 °C

Package

DirectFET (M)

Polarity

N

Ptot max

42 W

QG (typ @10V)

23 nC

RDS (on) (@10V) max

10.4 mΩ

RthJA max

45 K/W

RthJC max

3 K/W

Rth

3 K/W

VDS max

80 V

VGS(th) range

2 V to 3.5 V

VGS(th)

2.7 V

Apps

Power optimizer solutions for scalable PV systems

Features

  • Optimized for DC-DC converters
  • Excellent gate charge
  • Superior thermal resistance
  • Dual-side cooling
  • Low parasitic inductance
  • Low profile (<0,7mm)
  • N-channel, normal level
  • 100% avalanche tested
  • Pb-free plating; RoHS compliant
