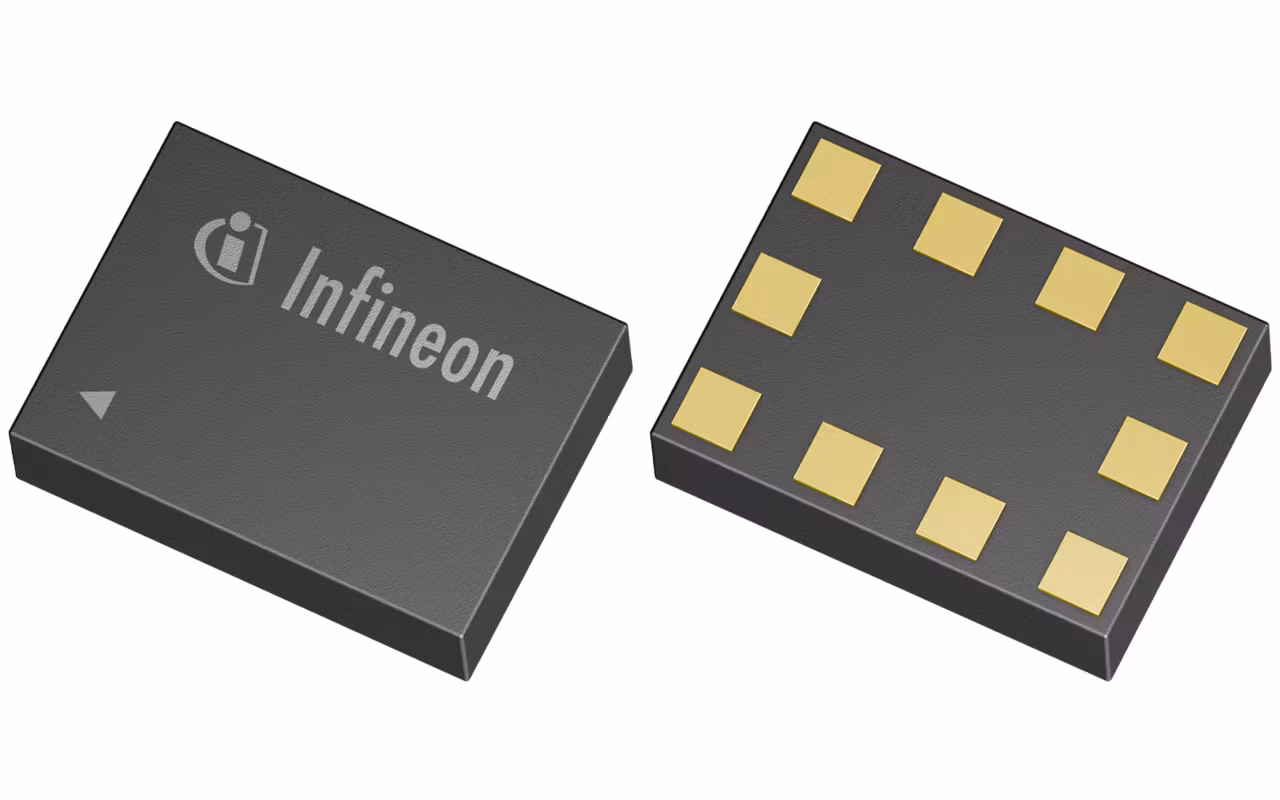

BGSA143GL10
  • BGSA143GL10

BGSA143GL10

Active and preferred

BGSA143GL10 is a small and versatile Single-Pole Quad Throw (SP4T) RF switch optimized for low COFF as well as low RON enabling applications up to 6.0GHz. GPIO digital control lines offer the possibility to adopt SP4T, SPDT along with SPST topology for an optimum flexibility in RF Front-end designs. BGSA143GL10 is ideal for high Q tuning applications. This single supply chip integrates on-chip CMOS logic control. It can be driven by 2 or 3 CMOS or TTL compatible control input signals. Due to its high RF voltage ruggedness and OFF RF ports reflective short feature, it is suited for switching any reactive devices such as inductors and capacitors in RF matching circuits without significant losses, also mitigating or even eradicating unwanted parasitic RF resonances.

Infineon Technologies BGSA143GL10 Product Info

16 April 2026 1

Parameters

COFF

140 fF

Control Interface

GPIO

Frequency Range

0.4 - 6.0 GHz

Halogen-free

Yes

RON

1.15 Ω

Size

1.1 x 1.5 mm²

Switch Type

SP4T

VRFmax

42 V

Apps

Consumer electronics, Mobile device and smartphone solutions, Security camera and video doorbell

Features

  • Designed for high-linearity antenna tuning switching and RF tuning applications
  • Ultra low RON resistance of 1.15 Ω at each port in ON state
  • Low COFF capacitance of 140 fF at each port in OFF state
  • High RF operating peak voltage handling of 42 V in OFF state
  • Resonance-Stopper Antenna Tuning
  • Low harmonic generation
  • 3 GPIO pins control interface
  • Supply voltage range: 1.65 to 3.6 V
  • No RF parameter change within supply voltage range
  • Small form factor 1.1 x 1.5 mm2 (MSL1, 260°C per JEDEC J-STD-020)
  • RoHS and WEEE compliant package
