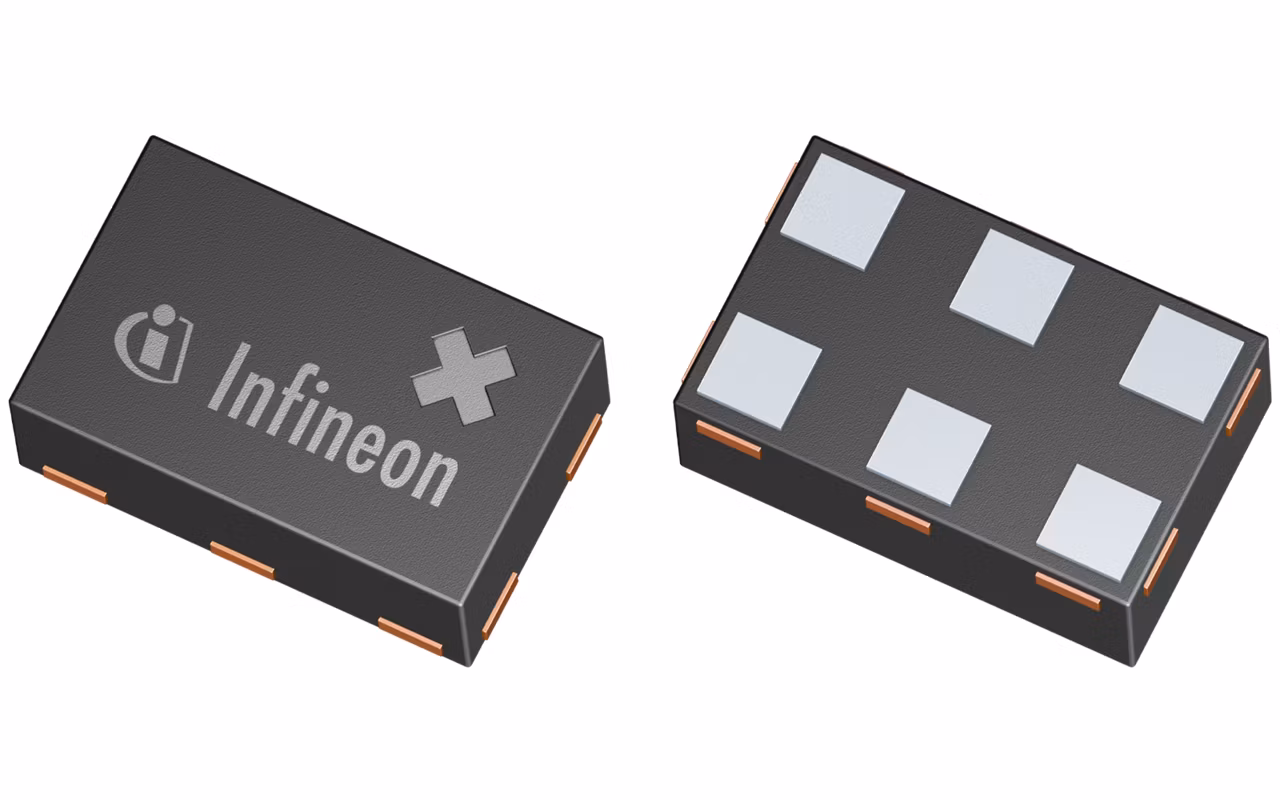

BGS12WN6
  • BGS12WN6

BGS12WN6

Active and preferred

The BGS12WN6 is a broadband SPDT RF switch suitable for various wireless systems, including WiFi \BT, UWB, and cellular. Its high linearity performance and low insertion loss make it an ideal choice for switching transmit signals, e.g., as Tx \Rx switch or as antenna diversity switch. The integrated on-chip CMOS logic allows direct connection to a digital control pin, eliminating the need for extra interface circuitry, thereby simplifying system design, and reducing component count. The isolated port is a reflective short. The device’s flexible voltage supply and control enable easy adaptation to diverse applications and use cases. The BGS12WN6 is fabricated using Infineon’s proprietary RF CMOS technology. Housed in a miniature package, this device is particularly well-suited for applications where PCB space is critical, allowing for optimal utilization of available board real estate.

Infineon Technologies BGS12WN6 Product Info

16 April 2026 0

Parameters

Control Interface

GPIO

Frequency Range

0.05 - 9.0 GHz

Insertion Loss (@1GHz)

0.16 dB

Isolation (@1GHz)

46 dB

Pmax max

30 dBm

Supply Voltage

1.65 - 3.6 V

Switch Type

SPDT

Apps

Automotive telematics control unit (TCU), Mobile device and smartphone solutions, Consumer Wearables, Connected and smart LED lighting for IoT, Security camera and video doorbell

Features

  • Frequency range from 0.05 to 9 GHz
  • Small size 0.7 × 1.1 mm2 and ultra-low profile of 0.375 mm height max
  • Fast switching speed
  • Low insertion loss and high port to port isolation up to 9 GHz
  • RF input power up to 30 dBm power
  • Low current consumption
  • No DC blocking capacitors required if no DC applied on RF lines
  • RoHS and WEEE compliant package
