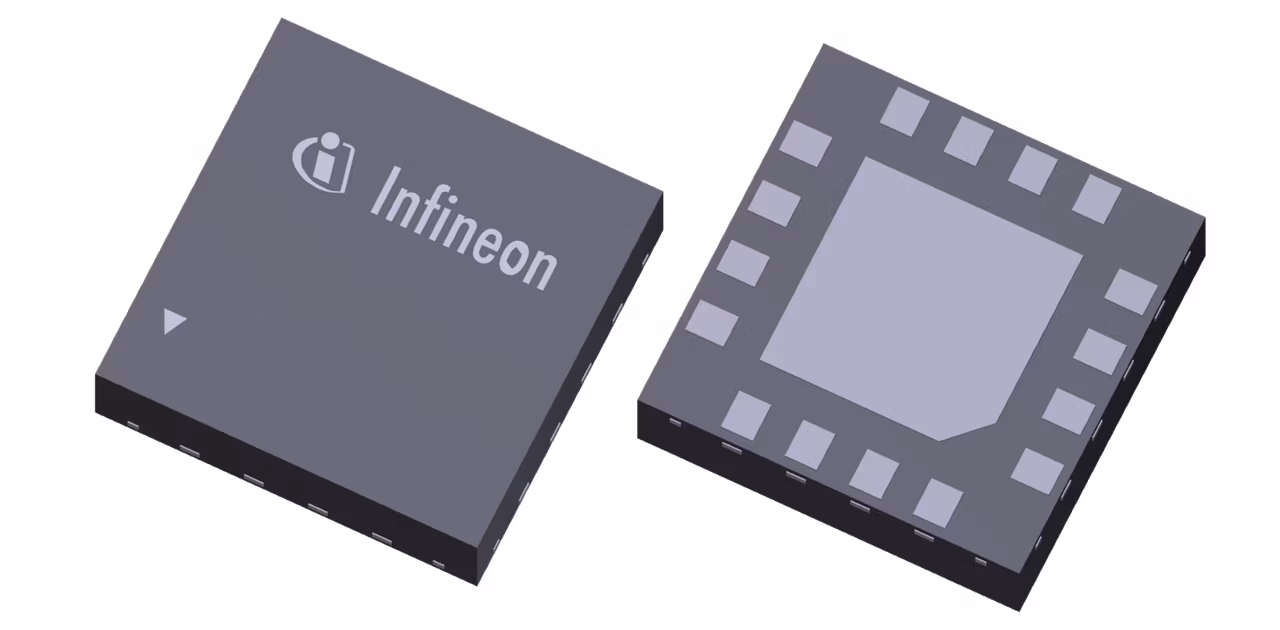

BGAP2S30A
  • BGAP2S30A

BGAP2S30A

Active and preferred

The BGA P2S30A is a 3.3 to 4.2 GHz mid-band driver amplifier that can be used as pre-driver or driver in RF applications from massive MIMO 5G base stations to small cells and access points. The SiGe based amplifier offers best RF performance and a high OP1dB: 28.5 dBm. The driver amplifier is typically placed between transceiver IC and power amplifier but can also be used as power amplifier for low power applications. The input and outputs are single-ended and internally matched to 50 Ω. The driver amplifier boasts high linearity and an excellent wide-band gain flatness of <0.4 dB for optimum linearization results of the driven PA.

Infineon Technologies BGAP2S30A Product Info

16 April 2026 0

Parameters

ACLR

-48.6 dBc

Frequency Range range

3.3 GHz to 4.2 GHz

Gain Flatness max

0.4 dB

Gain

35 dB

Noise Figure

3.2 dB

OIP3

34.1 dBm

OP1dB

28.5 dBm

Supply Voltage

5 V

Features

  • Supply voltage: 5V
  • Gain Flatness: 0.4 dB
  • High Gain: 35 dB
  • High OP1dB: 28.5 dBm
  • Mid-band: 3.3 - 4.2GHz
  • Packaging: TSNP-16-12

Description

  • BiCMOS technology for an optimized performance
  • High gain and high power for fewer components in line-up
  • Wide BW 3.3-4.2 GHz with best gain flatness
  • Internally matched to 50 Ω, saving external matching components
  • Easy design-in and small area  footprint
