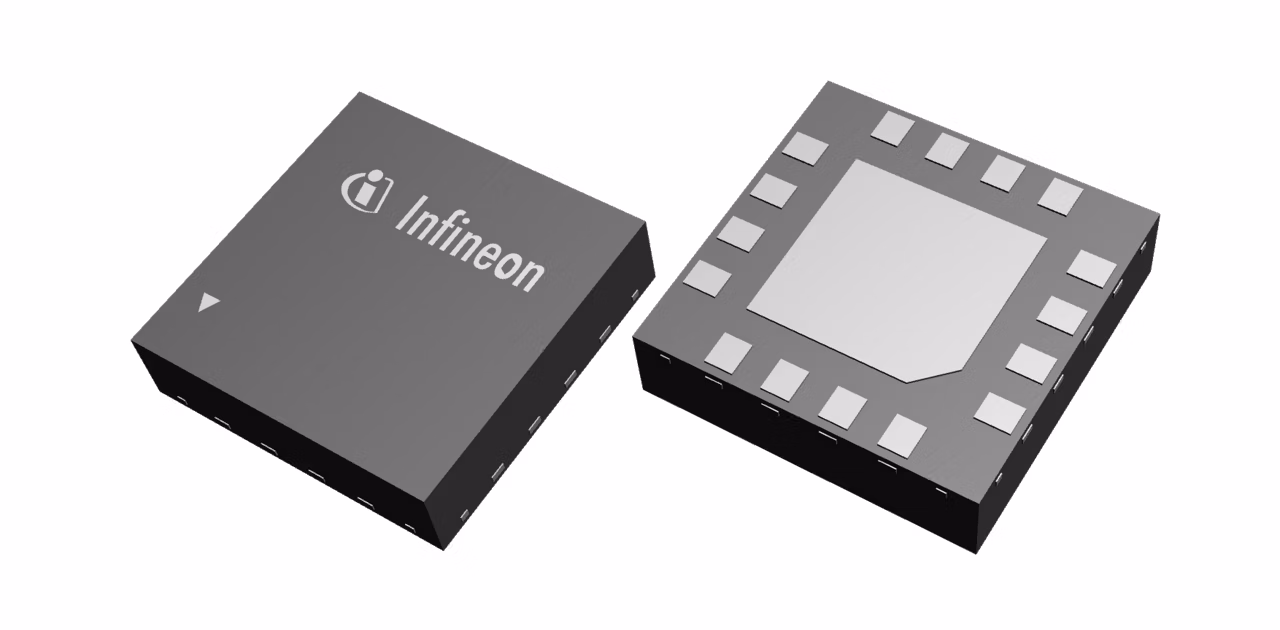

BGA7P220
  • BGA7P220

BGA7P220

Active and preferred

The BGA7P220 is a 2.3 to 2.7 GHz low-band driver amplifier that can be used as pre-driver or driver in RF applications from massive MIMO 5G base stations to small cells and access points. The SiGe based amplifier offers best RF performance and a high OP1dB: 27.5 dBm. The driver amplifier is typically placed between transceiver IC and power amplifier but can also be used as power amplifier for low power applications. The driver amplifier boasts high linearity and an excellent wide-band gain flatness of <0.5 dB for optimum linearization results of the driven PA.

Infineon Technologies BGA7P220 Product Info

16 April 2026 0

Parameters

ACLR

45 dBc

Frequency Range range

2.3 GHz to 2.7 GHz

Gain Flatness

0.5 dB

Gain

34.4 dB

Noise Figure

3.5 dB

OIP3

32.2 dBm

OP1dB

27.5 dBm

Package Size (mm²)

3.0 x 3.0

Supply Voltage

3.3 V

Features

  • Supply voltage: 3.3 V
  • Gain flatness: <0.5 dB
  • High gain: 34.4 dB
  • High OP1dB: 27.5 dBm
  • Low-band: 2.3-2.7 GHz
  • Packaging: TSNP-16-12

Description

  • Internal matching: No external matching components
  • High gain and high power: 27.5 dBm OP1dB and 34.4 dB gain
  • Excellent linearity with -45 dBc ACLR
  • Wide BW covers 2.3-2.7 GHz
  • Differential input saves an external balun
