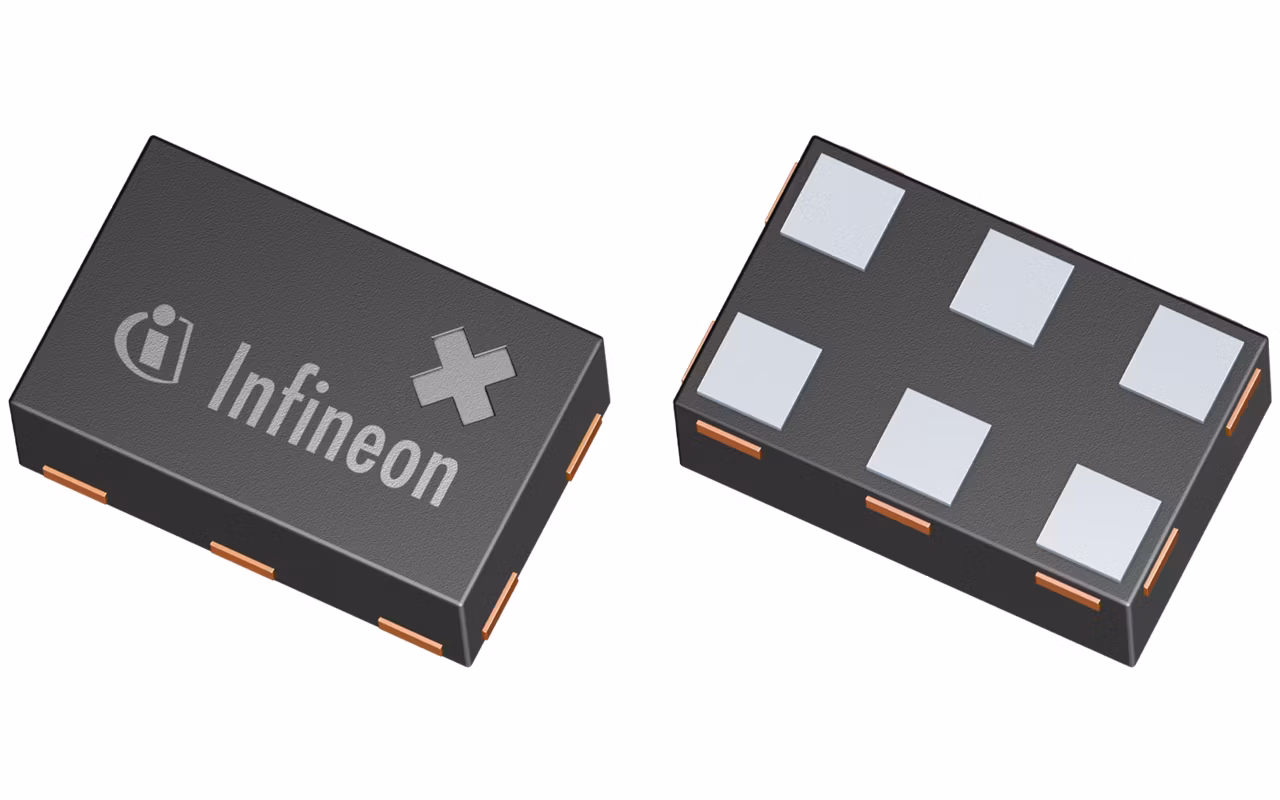

BGA535N6
  • BGA535N6

BGA535N6

Active and preferred

BGA535N6 enhances GNSS signal sensitivity for band L1/L2/L5 especially in wearables and industrial applications. It operates in extended temperature range of -40 to 105 °C. It offers 2 different operating modes: Low power mode Standard mode The broadband design provides best sensitivity for GNSS signals within 1164 to 1615 MHz with the same matching. Simplified dual-band GNSS system designs with one RF-path are enabled by BGA535N6.

Infineon Technologies BGA535N6 Product Info

16 April 2026 0

Parameters

Frequency

1164 – 1615 MHz (L1/L2/L5)

Gain

17.8 dB

ICC

1.5 mA

IIP3

-3 dBm

NF

0.8 dB

P-1dB (in)

-15

VCC operating range

1.1 V to 3.3 V

Features

  • Operation frequencies 1164 to 1615 MHz
  • Multiple operating modes for different applications
  • Current consumption down to 1.5 mA
  • Wide supply voltage range 1.1 V to 3.3 V
  • High insertion power Gain up to 21 dB
  • Low noise figure down to 0.7 dB
  • 2 kV HBM ESD protection (including AI pin)
  • Best sensitivity for GNSS signals within 1164 to 1615 MHz with the same matching
  • Extended temperature range -40...105 °C

Description

  • Dualband functionality in one LNA
  • The device can function on higher temperature ranges
  • Covers L1 + L2/L5 Bands
