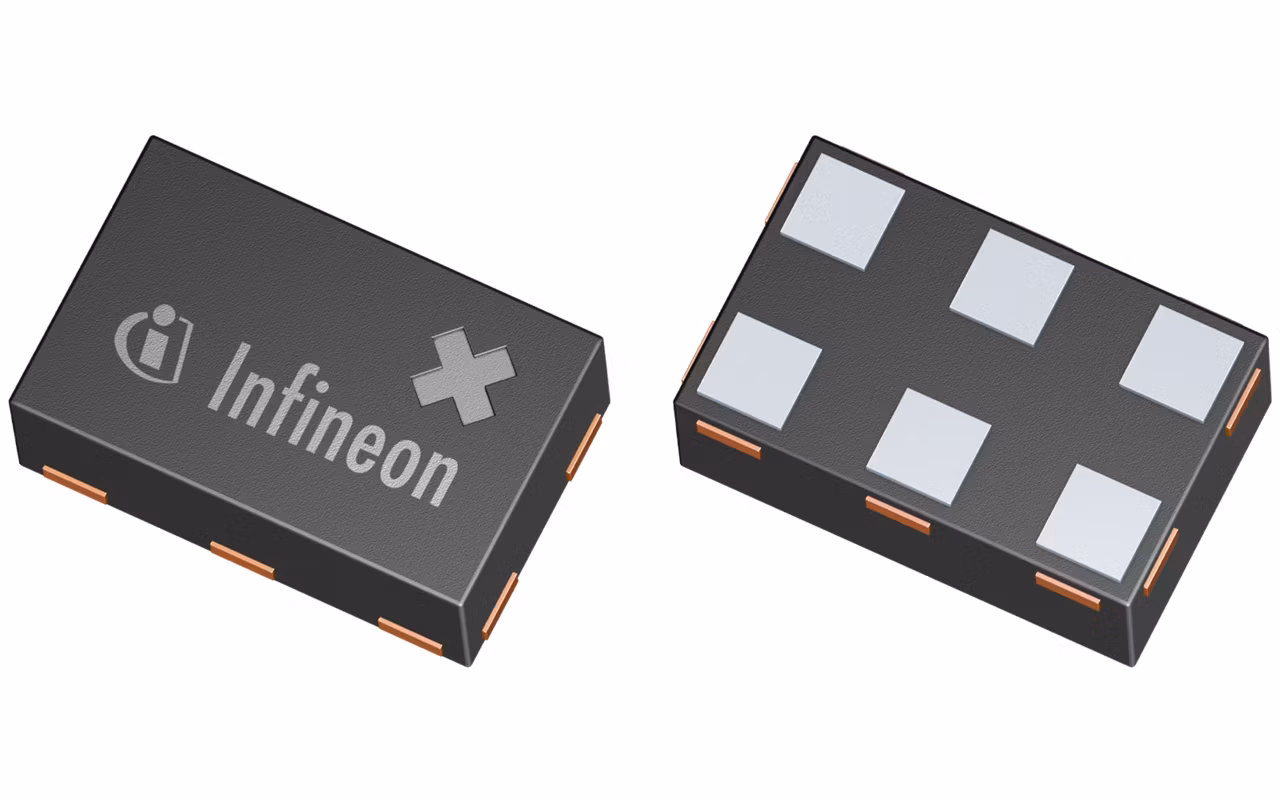

BGA524N6
  • BGA524N6

BGA524N6

Active and preferred

Silicon Germanium Low Noise Amplifier for Global Navigation Satellite Systems (GNSS)

Infineon Technologies BGA524N6 Product Info

16 April 2026 0

Parameters

Frequency

1550 - 1615 MHz

Gain

19.6 dB

ICC

2.5 mA

IIP3

-5 dBm

NF

0.55 dB

P-1dB (in)

-16

VCC operating range

1.5 V to 3.3 V

Apps

Light electric vehicle solutions, Mobile device and smartphone solutions, Smart speaker designs

Features

  • High insertion power gain: 19.6 dB
  • Out-of-band input 3rd order intercept point: -4dBm
  • Input 1 dB compression point: -12 dBm
  • Low noise figure: 0.55 dB
  • Very low current consumption: 2.5 mA
  • Operating frequencies: 1550 - 1615 MHz
  • Supply voltage: 1.5 V to 3.3 V
  • Digital on/off switch (1V logic high level)
  • Ultra small TSNP-6-2 leadless package (footprint: 0.7 x 1.1 mm2)
  • B7HF Silicon Germanium technology
  • RF output internally matched to 50 Ω
  • Only 1 external SMD component necessary
  • 2kV HBM ESD protection (including AI-pin)
  • Pb-free (RoHS compliant) package
