BCR553
  • BCR553

BCR553

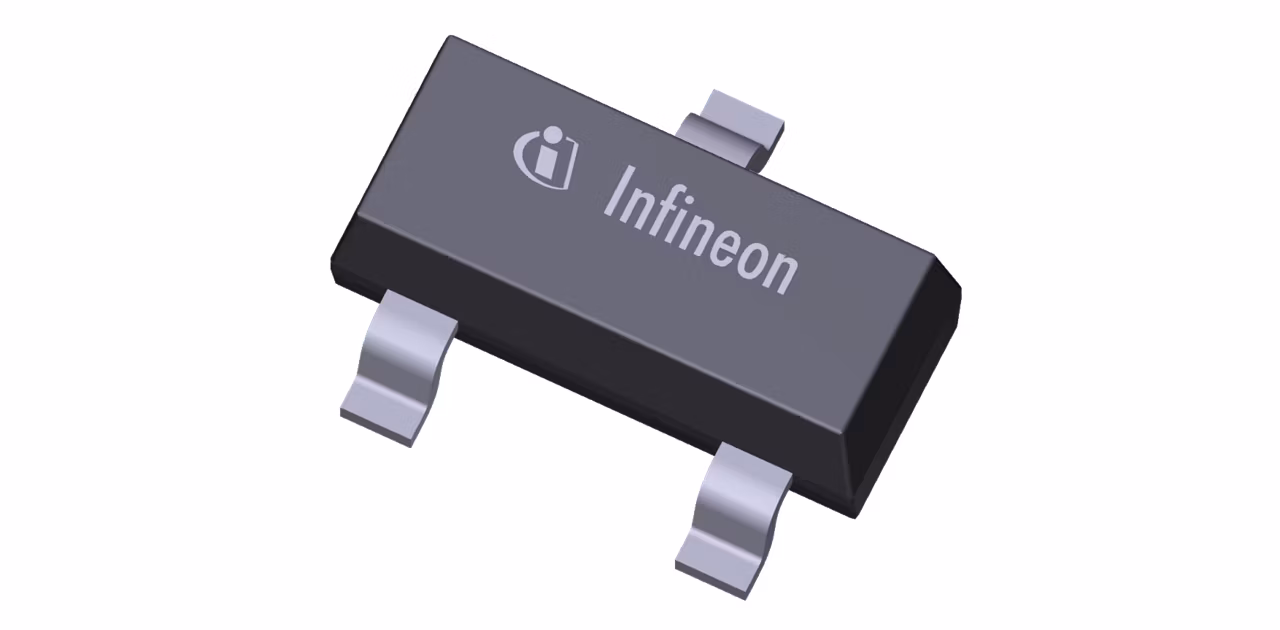

PNP Silicon Digital Transistor

Infineon Technologies BCR553 Product Info

16 April 2026 10

Parameters

fT

150 MHz

hFE min

40

ICBO max

100 nA

Mounting

SMT

Polarity

PNP (Single)

Ptot max

330 mW

R1 / R2

1

R1

2.2 kΩ

R2

2.2 kΩ

VCBO max

50 V

VCE(sat) max

0.3 V

VCEO max

50 V

VEBO max

10 V

Vi (off) max

1.5 100µA / 5V

Vi (on) max

1 V

Vi (on) min

1 2mA / 0.3V

Features

  • Built in bias resistor (R1= 2.2 kΩ, R2= 2.2 kΩ)
  • Pb-free (RoHS compliant) package
  • Qualified according AEC Q101
