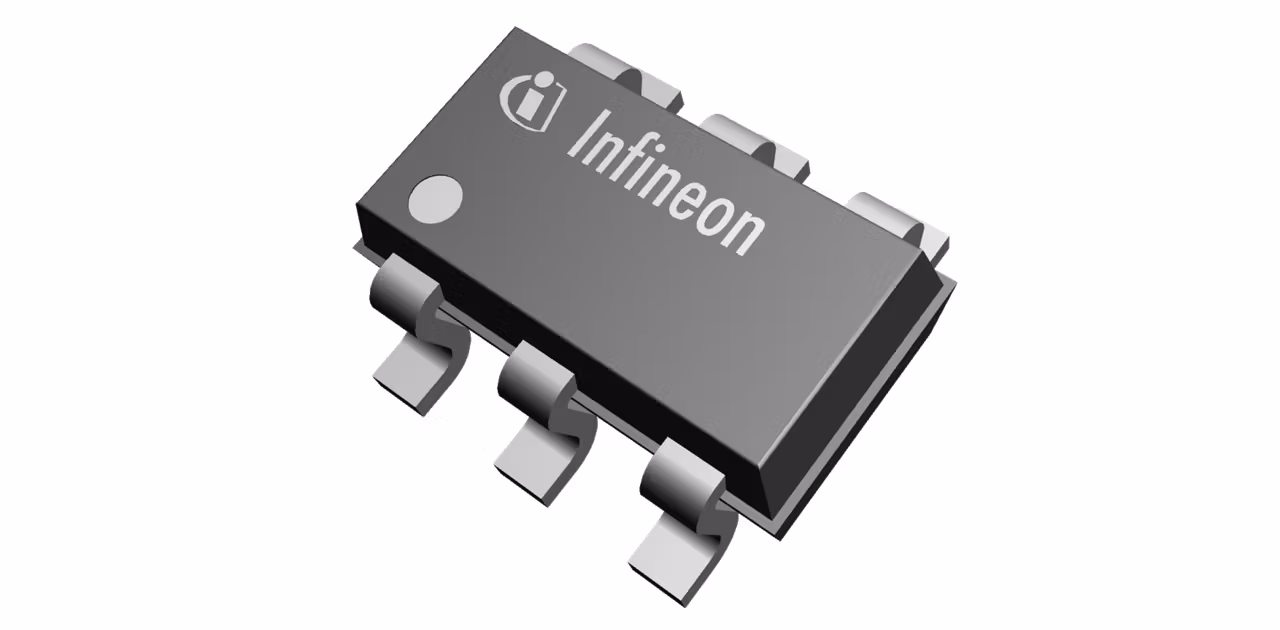

BCR405U
  • BCR405U

BCR405U

The BCR405U linear LED driver IC is tailored to drive low power LEDs in general and automotive lighting applications.

Infineon Technologies BCR405U Product Info

16 April 2026 0

Parameters

Dimming

PWM by external transistor

Iout max

65 mA

Iout

50 mA

Language

SPICE

Packaging

3k reel

Ptot max

750 mW

Qualification

Automotive

Type

Linear

Vdrop

0.8 V

VS range

1.4 V to 40 V

Features

  • LED drive current preset to 50mA
  • Output current adjustable
  • Supply voltage up to 40V
  • PNP transistor power stage
  • PWM dimmable by external transistor
  • Up to 750mW power dissipation
  • Qualified according to AEC Q101

Description

  • Driving I under control homog light O/P
  • Easy parallel of drivers to increase I
