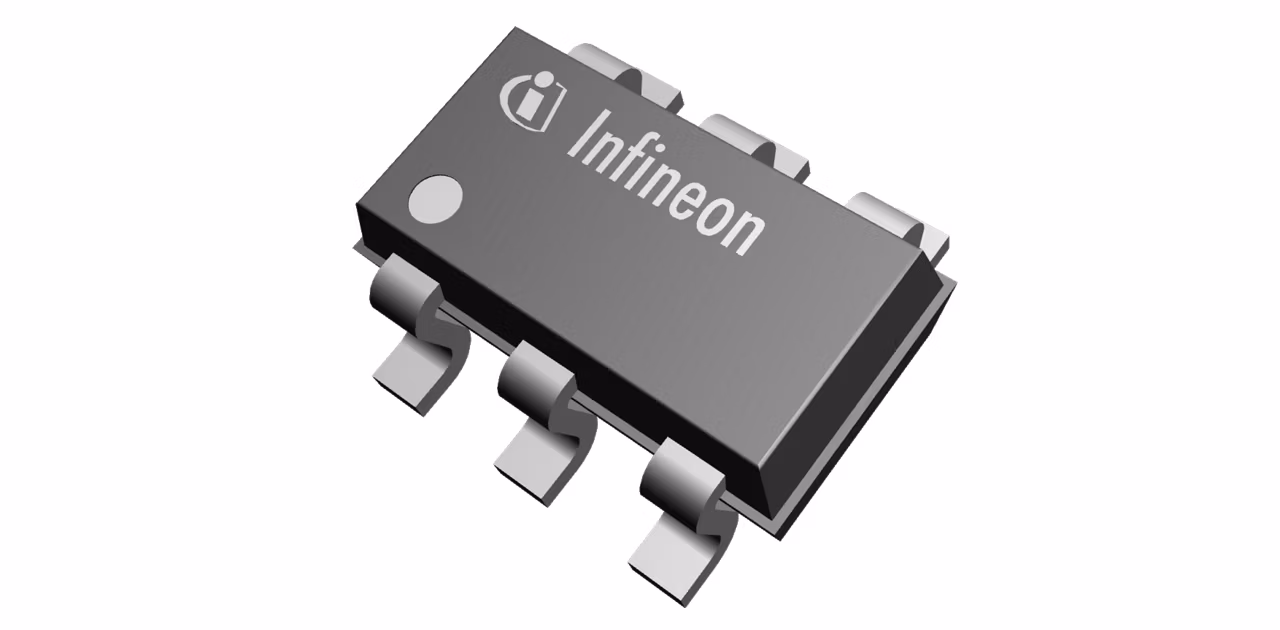

BCR402U

The BCR402U linear LED driver IC is tailored to drive low power LEDs in general and automotive lighting applications.

Infineon Technologies BCR402U Product Info

16 April 2026 0

Parameters

Dimming	PWM by external transistor
Iout max	65 mA
Iout	20 mA
Language	SPICE
Packaging	3k reel
Ptot max	750 mW
Qualification	Automotive
Type	Linear
Vdrop	0.8 V
VS range	1.4 V to 40 V

Apps

Domain controller for ADAS & autonomous driving, Automotive body electronics & power distribution, Automotive secondary power distribution unit, Automotive body control module (BCM), On-board charging (OBC)

Features

LED drive current preset to 20mA
Output current adjustable
Supply voltage up to 40V
PNP transistor power stage
PWM dimmable by external transistor
Up to 750mW power dissipation
Qualified according to AEC Q101
BCR402U E6433 is available as a 10k reel

Description

Driving I under control homog light O/P
Easy parallel of drivers to increase I
