AIKDQ40N75CP2
  • AIKDQ40N75CP2

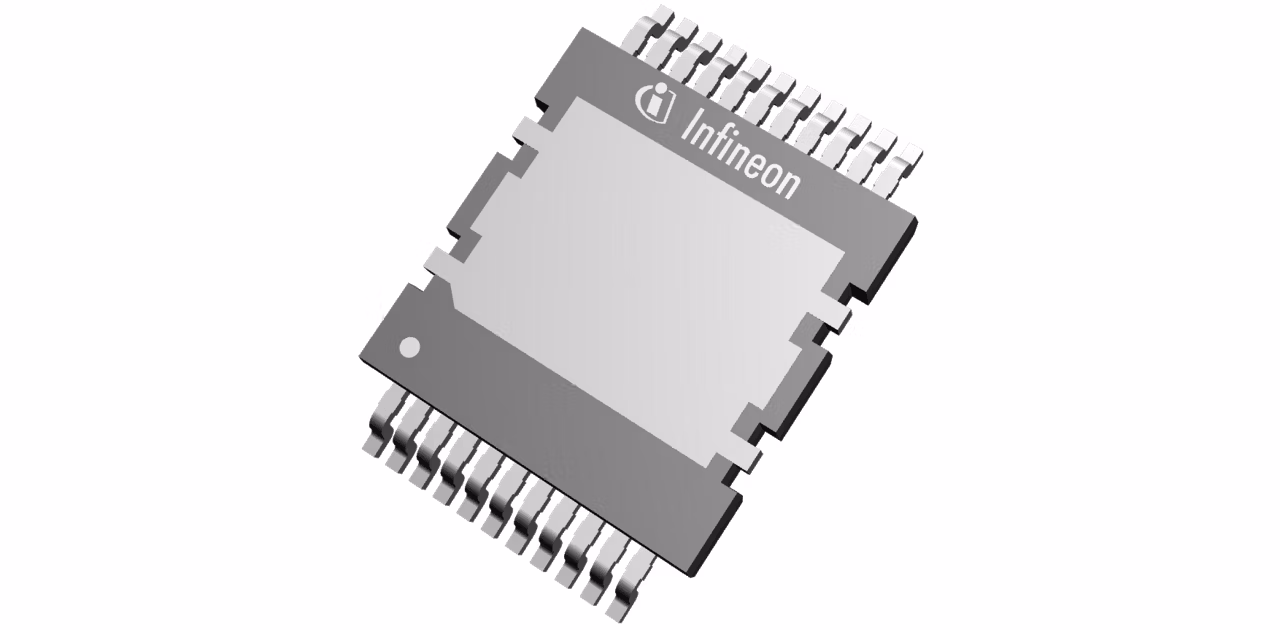

AIKDQ40N75CP2

IGBT + diode combinations provide a cost-efficient solution with superior electrical performance, improved thermal management, and simplified manufacturing, enhancing overall system efficiency and reliability, ideal for demanding applications.

Infineon Technologies AIKDQ40N75CP2 Product Info

16 April 2026 0

Parameters

Co-pack diode technology

EMCON3

Eon

0.6 mJ

IC (@ 100°) max

40 A

IC (@ 25°) max

70 A

ICpuls max

120 A

IF max

70 A

IFpuls max

120 A

Irrm

38 A

Package

PG-HDSOP-22-2

Ptot max

214 W

QGate

150 nC

Qrr

0.8 nC

Reflow Solderable

Yes

td(off)

200 ns

td(on)

30 ns

Technology

EDT2

tf

80 ns

tr

17 ns

Type

DuoPack IGBT + Diode

VCE(sat)

1.3 V

VCE max

750 V

VF

1.7 V

Description

  • Cost-Efficiency IGBT + diode
  • Superior enhanced performance
  • Thermal exceptional resistance
  • Manufacturing easy assembly
