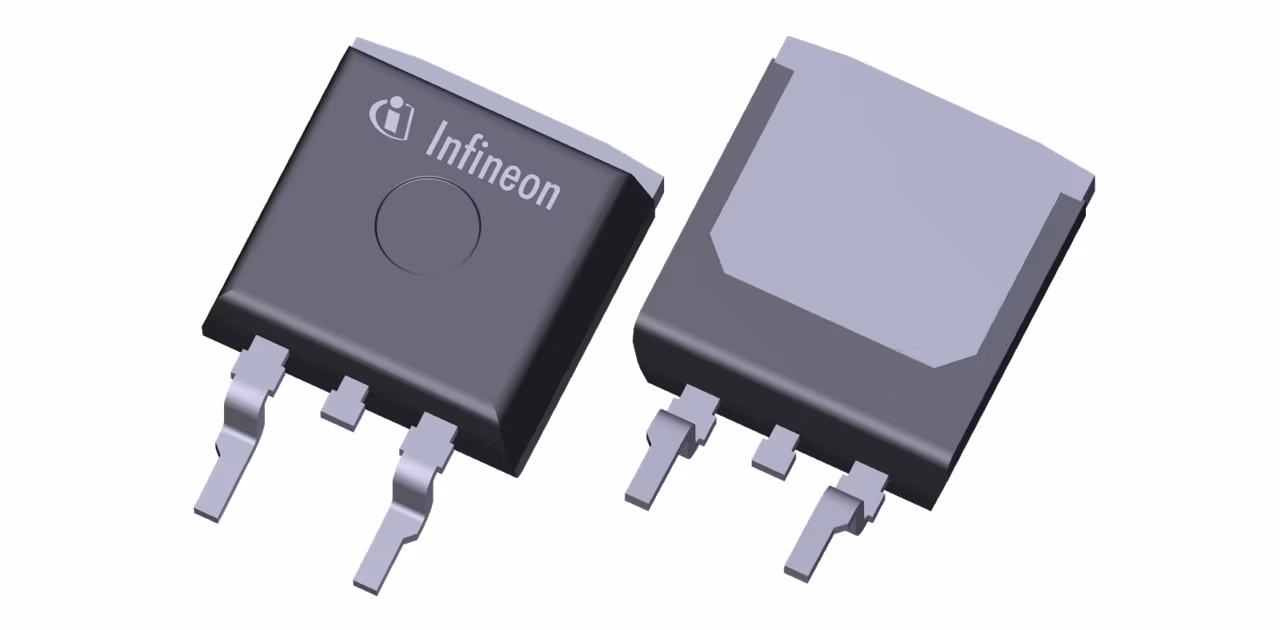

AIGB40N65H5
  • AIGB40N65H5

AIGB40N65H5

Infineon's 650V TRENCHSTOP™ 5 AUTO tech boosts efficiency in electric and hybrid vehicles. Its IGBT technology minimizes losses, maximizing efficiency for applications like On-Board Chargers, PFC and DC/AC. This leads to extended range or smaller EV batteries and reduced fuel consumption in hybrids. TRENCHSTOP™ 5 AUTO offers a cost-efficient alternative to MOSFETs, while the SMD housing, like D²PAK, cuts system costs and enhances quality control.

Infineon Technologies AIGB40N65H5 Product Info

16 April 2026 0

Parameters

IC (@ 100°) max

40 A

IC (@ 25°) max

74 A

Launch year

2020

Package

D2PAK (TO-263-3)

Planned to be available until at least

2033

Reflow Solderable

Yes

Switching Frequency

15-100 kHz

Technology

IGBT TRENCHSTOP™ 5

Type

IGBT

VCE(sat)

1.65 V

VCE max

650 V

Voltage Class max

650 V

Apps

Automotive battery management system (BMS) - high-voltage, EV traction inverter

Features

  • TRENCHSTOP™ 5 tech with low VCEsat
  • 650V break-down V, 40A nominal current
  • Very fast switching (up to 150kHz)
  • Automotive qualified in accordance
  • Max junction temperature 175 °C
  • Highest efficiency low conduction losses
  • very low switching losses
  • Very low junction and case temperature
  • SMD D2PAK package for low assembly costs
  • Extremely robust
